Essential Diagnostic Tools

Hand pump for calibrating and checking the operations of the diesel injectors
- precise adjustment of the injection pressure (adjust the opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 -> 400 bars.
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm

Electronic control unit to be used in conjuction with a pop tester to generate the electric pulse and check the electromagnetic actuator of common rail injectors (Bosch, Delphi, Denso)

Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.

Microscope 100X with top and bottom lights

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors.
List of contents:
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 0.01 mm (5 pcs each thickness)

Micron measuring station with digital reading. 0-25 mm range.

Holder for millesimal gauge with 70 mm diameter round top. Made in hardened, ground and lapped steel.

Tool box for MW BOSCH (type Mercedes) consisting of 18 pieces

Complete tool box for EP-VE BOSCH pumps composed of 15 tools (20 pieces)

Millesimal digital comparator 15 mm stroke

20 mm conical coupling to drive diesel pumps on any test bench, lenght 58, teeth mm 12.
The coupling is equipped with internal nut for locking and pulling out the shaft (BH 1 686 430 024)

MM - Palmar multimeter for EDC tests

Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors, with 5 useful tools.
List of contents:
8210-T1, ball handling tool
8210-T2, antimagnetic pair of pliers
8210-T3, ring inserter
8210-T4, valve interter
8210-T5, ring extractor
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 1.30 mm (5 pcs each thickness)

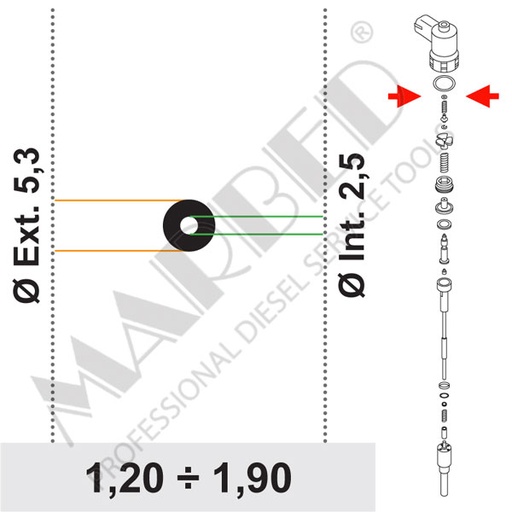

القطر الخارجي 5.3 ملم ، القطر الداخلي 2.5 ملم

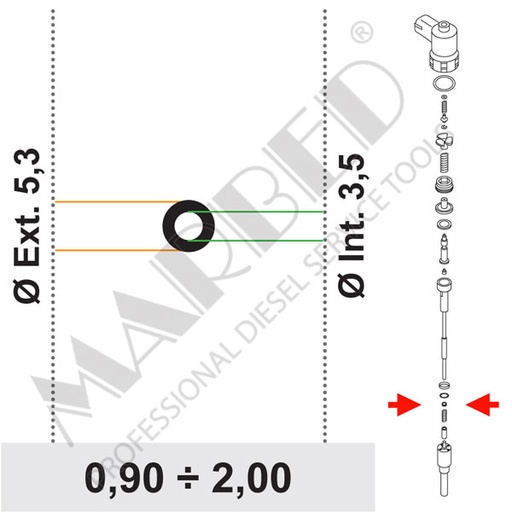

القطر الخارجي 5.3 ملم ، القطر الداخلي 3.5 ملم
