Pump Testing Equipment

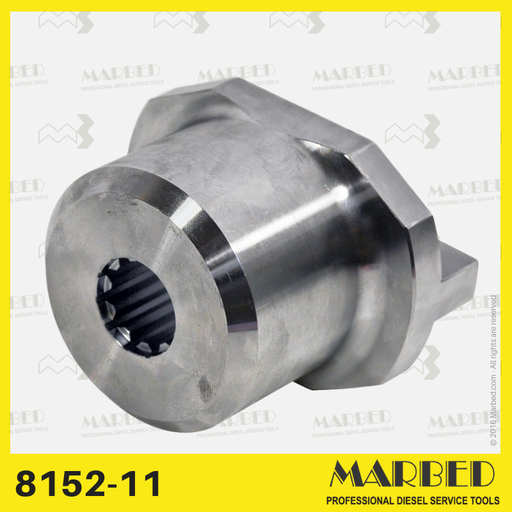

Acoplamiento estriado para bombas CP3.4 (MAN) en cualquier banco de pruebas. Similar a 1 685 702 092
Splined coupling to drive CP3.4 (MAN) pumps on any test bench.
Similar to 1 685 702 092

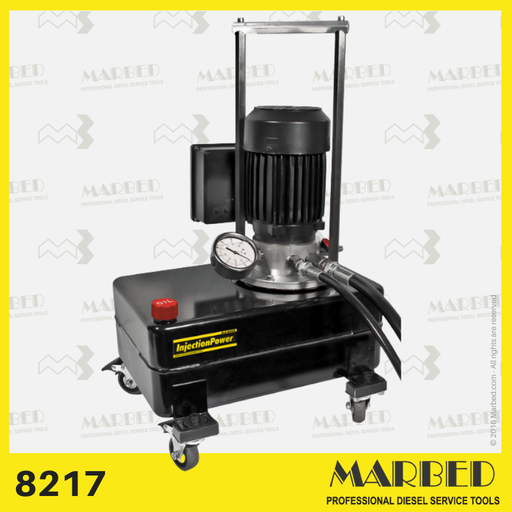

Unidad de lubricación para bancos de pruebas para bombas diesel
Unidad de lubricación externa
*** Requerido si el banco de pruebas en uso no está equipado con un sistema de lubricación.

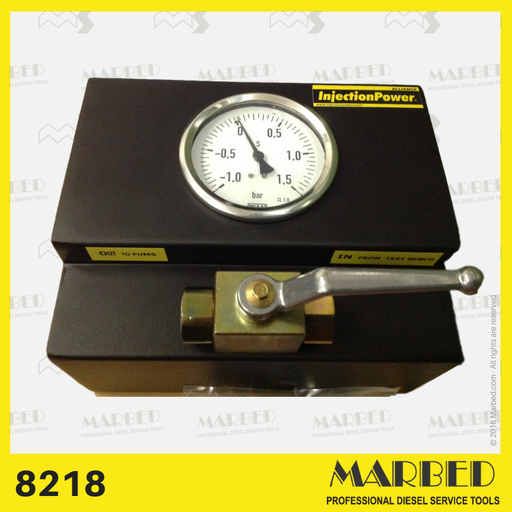

Kit de control
This device allows to monitor the pump body pressure (5 BAR).
It is also equipped with ball valve, to measure the negative pressure generated by the pump.
Caution: Not all test benches are able to supply the amount of flow required by the comon rail pumps. Therefore, it is crucial to monitor that, during the test, the pump does not go into cavitation.

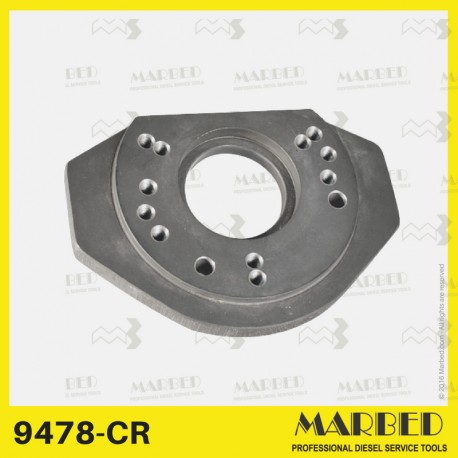

Brida
Garantiza la fijación centrada de las bombas con cubo de 50 mm de diámetro, en cualquier banco de pruebas. La brida requiere un soporte universal 9680-A o similar.
Conjunto de montaje/accionamiento para bombas CP3.4 (MAN), CP2 y HP0 . Listo para lubricación externa por aceite.
Ready for external lubrication by oil.

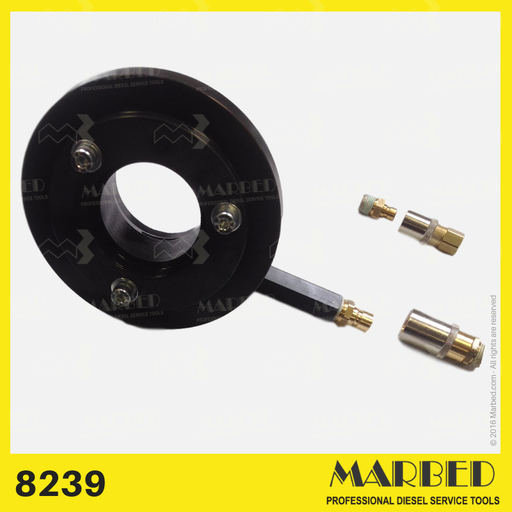

CAT centering flange
CATERPILLAR pump centering flange with lubrication
Giunto 8152-11 con smusso pronunciato

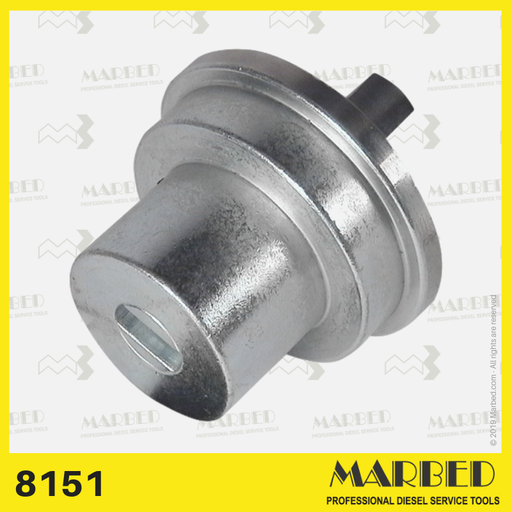

Drive coupling
10 mm Oldham coupling to drive diesel pumps on any test bench.
Drive coupling
9 mm Oldham drive coupling for CP3 (FIAT) ans Siemens pumps on any test bench.
Similar to 1 685 702 090
Drive coupling
Acoplamiento de accionamiento Oldham de 8 mm para bombas CP1 (Mercedes) en cualquier banco de pruebas. Similar a BH 1 685 702 086
25 mm conical coupling
25 mm conical coupling to drive diesel pumps on any test bench. Length 100, teeth 12 mm
The puller 9463 is recommended to unplug the shaft.
Conical coupling
20 mm conical coupling to drive diesel pumps on any test bench, lenght 58, teeth mm 12.
The coupling is equipped with internal nut for locking and pulling out the shaft (BH 1 686 430 024)
