Kit dan Bundel

Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

Special tool for the disassembly and the aligned mounting of the nozzle and for preserving the pins from breaking during the rotation of the nozzle nut.
The tool is equipped with analogic gauge for the reference of the force applied on the injector body.
Similar to 0 986 610 130

Extended configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Tool box ( 15 items) for assembly and disassembly of CAV-DPA rotary pumps with mechanical and hydraulic governor.

Configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

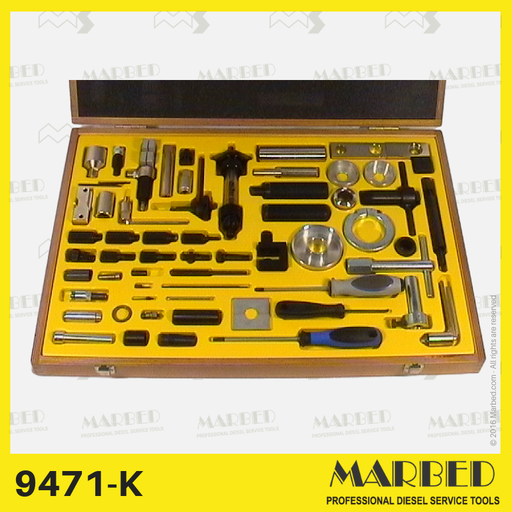

Enlarged configuration of special tools (in wooden case) for the Bosch VE rotary pumps.

Complete tool box with comparator bearings for the survey of delivery start ratio on Bosch rotating pumps A, B, C and VE type on diesel engines.

Complete tool box for EP-VE BOSCH pumps composed of 15 tools (20 pieces)
