Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.

Swivel vice for Common-rail pumps

Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.

The flange 9478-V4 warrants the centered clamping of the Denso ECD-V4 diesel fuel injection pumps, on any test bench.
The flange requires 9680-A universal cradle or similar.

The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.

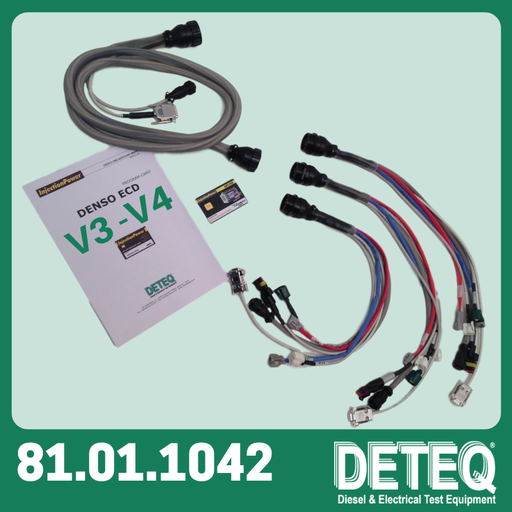

Kit for testing rotary Denso ECD-V3/V4 pumps.The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V3/V4 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V5 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

The kit includes:
- programming smartcard that allows ERT45R Simulator to actuate the necessary functions to test this type of pump
- basic cable (2 mt. length)
- adapter cable 81.02.434 (similar to Bosch 0986612434). Additional cables are available, under request
- Illustrated step-by-step instructions manual
- Test data to calibrate the pumps that can be connected to the adapter cable 81.02.434

The kit includes the mounting adapters for the following pumps: Bosch VE, Zexel VE, Delphi DPC, DPC, DP200, DPS.

The kit includes:
- programming card that allows ERT45R Simulator to actuate the necessary functions to test this type of pump
- basic cable (2 mt. Length)
- adapter cables 81.04.002 (Fiat), 81.04.003 (Ford), 81.04.004 (Volvo), 81.04.005 (Clio-Kangoo 1st generation), 81.04.006 (Clio-Kangoo 2nd generation).
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of Delphi DPCN pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables 81.06.231 (Nissan TD27, CD20), 81.06.234 (Isuzu 4JG2), 81.06.235 (Hyundai-Mitsubishi, 81.06.236 (MAZDA) are included
- servicing manual with step-by-step illustrated instructions
- test data to calibrate some of the pumps which can be plugged to the adapter cables 81.06.231, 81.06.234, 81.06.235

استفد من الإمكانات الكاملة لجهاز محاكي ERT45R لاختبار مضخات حقن الوقود الديزل من النوع P و H و M و R على أي منصة اختبار باستخدام هذا الطقم الشامل والمتنوع. تم تصميمه لضمان تشغيل سلس، ويتضمن جميع المكونات الأساسية لتسهيل عملية اختبار دقيقة وفعالة:

المزايا الرئيسية والمكونات:
بطاقة البرمجة
تقوم بتفعيل الوظائف الضرورية لوحدة التحكم ERT45R، مما يتيح قدرات اختبار متقدمة.

الكابل الأساسي (بطول 2 متر)
يقدم مرونة ومدى جيدًا، مما يسهل الحركة أثناء توصيل المحاكي بالمضخة.

كابلات محول (81.03.104)
متوافقة مع الموصلات المستخدمة عادةً في تطبيقات IVECO وVOLVO وSCANIA (مشابهة إلى Bosch 0 986 610 104)، مما يضمن التوافق مع مجموعة واسعة من التطبيقات.

دليل الصيانة الشامل
يتضمن تعليمات مصورة خطوة بخطوة لتسهيل الإعداد والتشغيل، مما يقلل من وقت التوقف ويزيد من الكفاءة.

نموذج التسجيل
يتيح الوصول إلى خطط اختبار محددة لمضخات حقن الوقود الديزل التي تتصل بكابل المحول المقدم. يتم توفير بيانات الاختبار بشكل منفصل ومجاني بعد قبول اتفاقية الترخيص.

المتطلبات المهمة
لاستغلال إمكانات الطقم بالكامل، يجب توفر المكونات التالية لضمان التشغيل الأمثل:

وحدة التحكم ERT45R (رقم القطعة 81.01.080B):
تعد هذه الوحدة القابلة للبرمجة مكونًا حيويًا، تدعم العمليات على أكثر من 20 نوعًا مختلفًا من مضخات حقن الوقود الديزل، مما يعزز من مرونة النظام في اختبارات متعددة.
كابلات محول إضافية:
تتوفر مجموعة من الكابلات الإضافية لضمان التوافق مع تخصيصات أخرى لمضخات حقن الديزل، مما يزيد من قابلية الطقم للتكيف مع احتياجات تشغيليات متنوعة.
تعظيم الأداء
للحصول على أفضل النتائج، تحقق من تضمين جميع المكونات المطلوبة في إعدادك. يضمن ذلك عمل الطقم البرمجي بأقصى طاقته، مقدماً أداءً ومرونة فائقة في تطبيقات الاختبار.

اختر طقم محاكي ERT45R لرفع قدرات اختبارك وضمان أداء موثوق مع مجموعة واسعة من مضخات حقن وقود الديزل.

Kit to program ERT45R Simulator, to test Bosch VE-HDK pumps (2nd generation technology, with inductive actuator).

The kit includes:
- programming card that allows ERT45R Simulator to actuate the necessary functions to test this type of pump
- basic cable (2 mt. length)
- Illustrated step-by-step instructions and servicing manual
- Adapter cable 81.02.430 (Similar to Bosch 0986612430). Additional cables are available, under request
- Test data to calibrate the pumps that can be connected to the adapter cable 81.02.430

New version of the b racket 9562-S. This revised design is suitable for the PFM1P100 pumps and the 0 141 401 106 as well.

Pair of universal flat bracket to install both P and H pumps, simply by placing or removing the thickness of adaptation

The rubber coating strengthens the tube which therefore vibrates less and produces less noise, extending its life. Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 450 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 073, Hartridge AHP120

Extended configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on

Panel of equipment for EDC electronic governors for BH VE, Mercedes, P, R, H pumps
