233 Tools for CP3 pumps

EUR (ecommerce)
Ordenar por: Destacado

233 Tools for CP3 pumps

Brida de centrado universal para bombas common rail, con 4 anillos.
La brida 8155-E garantiza la sujeción centrada de la mayoría de las bombas cr (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), en cualquier banco de pruebas.
La brida está equipada con 4 anillos de reducción para alojar los diámetros de cubo de 50, 60, 68, 80 mm, y las bombas CP1K.
La brida requiere 9680-A cuna universal o similar.
Morzada
Mordaza giratoria para bombas Common-Rail
8133-C
Splined socket wrench
Splined socket wrench for the low-pressure connections. Hole diam 10 mm ( BH 0 986 611 489)
Splined socket wrench
Splined socket wrench for the low-pressure connections. Hole diam 12 mm ( BH 0 986 612 991 )

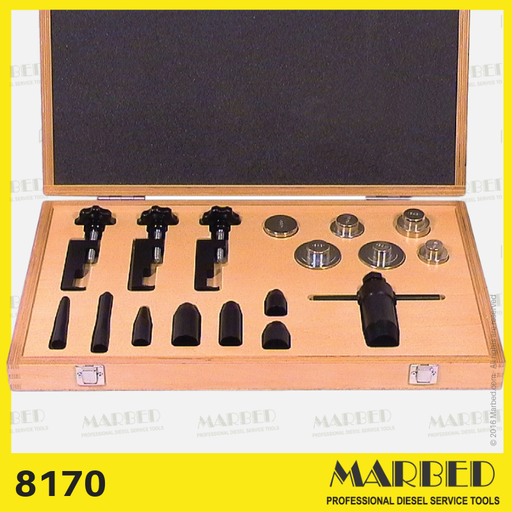

Caja de herramientas para reparar bombas common rail CP1 / CP3
Conjunto de herramientas para bombas CP3. Se incluyen las siguientes herramientas:
8133 - Juego de herramientas para bloquear elementos de bombeo
8171 - Juego de 6 insertadores para juntas tóricas
8172 - Extractor retén eje (25mm)
8173 - Juego de 7 insertadores de juntas tóricas
ESTRATTORE POMPA E FERMAFASE PER RENAULT ESPACE 2.2, MASTER 2.5,OPEL MOVANO
Inserters
Inserter bracket and oil seal for CP1 and CP3 pumps
Pulley extractor
Tool for the expulsion of the pump sprocket on BMW 520 TDS, 320D.
Similar to 0 986 613 170
Kit de medición
8225-CP3 helps to determine if the ZME valve can be retained, instead of installing a new one, on CP3 and CP1-H pumps.
Similar to 0 986 613 270

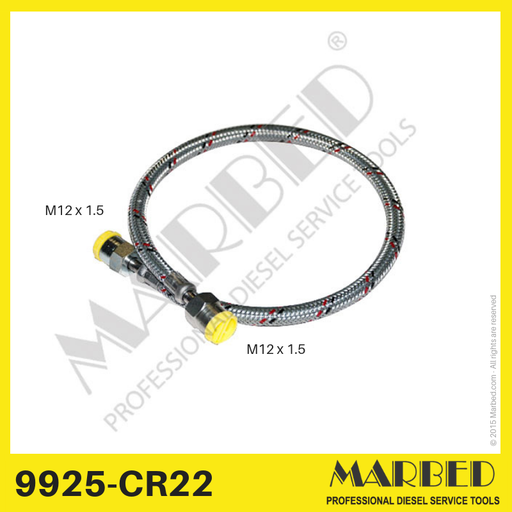

Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M12x1,5

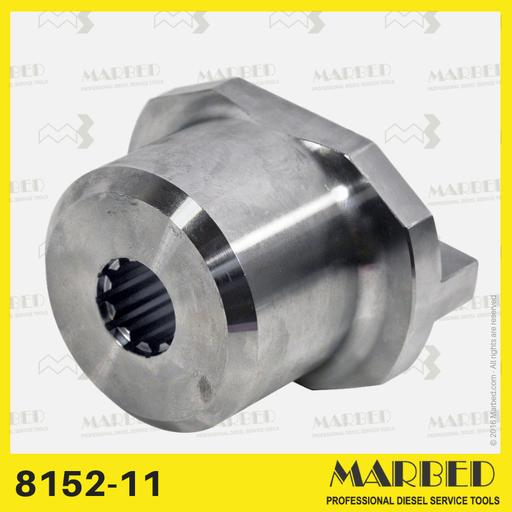

Acoplamiento estriado para bombas CP3.4 (MAN) en cualquier banco de pruebas. Similar a 1 685 702 092
Splined coupling to drive CP3.4 (MAN) pumps on any test bench.
Similar to 1 685 702 092
Bussola 1/2 per Torx 50
Torx bit
Similar to 0 986 613 145
Flexible pipe
Flexible pipe ( cr 2500BAR) to connect the high pressure delivery from the pump outlet to the rail. Nuts 14x15 / 14x1,5. Similar to 1 680 712 324
Kit de control
This device allows to monitor the pump body pressure (5 BAR).
It is also equipped with ball valve, to measure the negative pressure generated by the pump.
Caution: Not all test benches are able to supply the amount of flow required by the comon rail pumps. Therefore, it is crucial to monitor that, during the test, the pump does not go into cavitation.
Swivel fitting
High pressure swivel fitting Male 14x1,5 - Female 12x1,5
Swivel fitting
High pressure swivel fitting Male 14x1,5 - Female 14x1,5
Filtro magnético
Conjunto de montaje/accionamiento para bombas CP3.4 (MAN), CP2 y HP0 . Listo para lubricación externa por aceite.
Ready for external lubrication by oil.
Adjustable bracket for 8130
