Dispositif d'extraction des fumées similaire à Bosch 0 684 200 702
Fume extractor unit to be used in conjunction with any hand operated injector tester.
Steel structure with maze of decantation, two-stage filtration and top inspection door.
LED lights to enchance the view are integrated in the spray chamber.
12 V DC fun upto 27 m3 suction
Needle picker for Bosch piezo injectors
Spindle to trim piezo nozzle
Bride de montage.
Bride de centrage pour le montage des pompes Bosch VP44 et VR30 (ayant un diamètre de moyeu de 68 mm) sur le banc d'essai. Le berceau universel 9680-A ou similaire est requis
Cover
Replace lid for the serial lid on the prestroke magnet, with threaded hole for the measuring device ( BH 0 986 612 657)
Turning tool for removing the gearbox on Scania
Turning tool for rotating the flywheel
Similar to Scania 99 309
Quick release connection
Reinforced quick release connection dumper holder side
Rilsan flexible hose
Rilsan flex.hose with reinforced quick connections for high pressure complete with male/female fittings 20x1,5
Puller
Bush exctractor from the governor box. Similar to Bosch 0 986 619 250 (0 986 619 251) - KDAW 9995/14 (KDAW 9995/14 /1)
Kit inserter
Kit for exacting ball plux of BOSCH VE pump with LDA
Tubes d'essai haute pression pour banc d'essai (non pliés)
Specifications:
- external diameter: 6 mm
- internal diameter: 1,6 mm
- thickness: 2,2 mm
- length: 350 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 085
Tubes d'essai haute pression pour banc d'essai (non pliés)
Specifications:
- external diameter: 6 mm
- internal diameter: 3 mm
- thickness: 1,5 mm
- length: 600 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 015, Hartridge AHP121
Tubes d'essai haute pression pour banc d'essai (non pliés)
Specifications:
- external diameter: 8 mm
- internal diameter: 3 mm
- thickness: 2,5 mm
- length: 1000 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch 1 680 750 075, Hartridge AHP124
High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 840 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 028

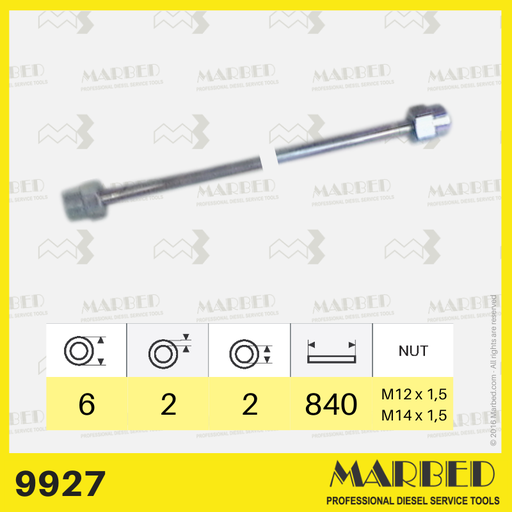

Tubes d'essai haute pression pour banc d'essai (non pliés)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 840 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 017, Hartridge AHP118, Denso 95095-10060
TUBO 6X2X600 14/14 (1 680 750 008)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 008, Hartridge AHP119, Denso 95091-10280
Tubes d'essai haute pression pour banc d'essai (non pliés)
Caractéristiques:
- diamètre extérieur: 6 mm
- diamètre intérieur: 2 mm
- épaisseur: 2 mm
- longueur: 450 mm
- écrous: M12x1,5 mm - M14x1,5 mm
Similaire à la référence Bosch 1 680 750 073, Hartridge AHP120
Cassetta calibri
Tool kit with 14 ground gauges for the cheking of ISO tubings tollerance of 1 tenth f.e.
Douilles entretoises
Paire de douilles entretoises pour éléments de pompage
