Akcesoria do stanowisk testowych (1.)

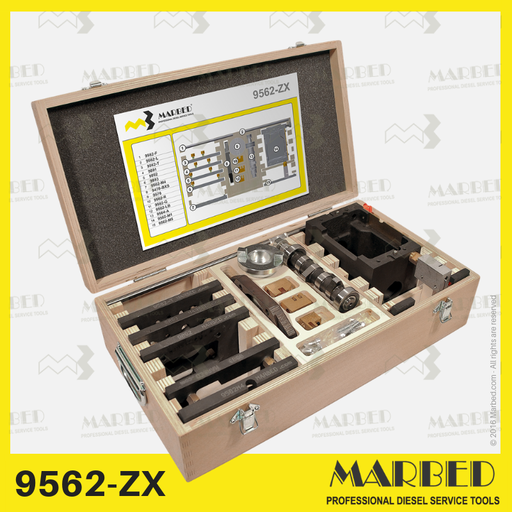

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Kołnierz 8155-E gwarantuje centralne mocowanie większości pomp cr (Bosch CP1, CP3, CP4, Delphi, Denso, VDO) na dowolnym stanowisku badawczym.
Kołnierz jest wyposażony w 4 pierścienie redukujące do średnic piast 50, 60, 68, 80 mm, a także pomp CP1K.
Kołnierz wymaga uniwersalnej kołyski 9680-A lub podobnej.

Stalowa rura do stołu testowego 6x2x600-12 / 14 (168075014)

Interfejs adaptera do napędzania pomp CAV DPA (wyposażonych w żeński wał wielowypustowy), za pomocą złącza stożkowego 17 mm. Wielowypustowy męski interfejs, stożkowy męski.

The Marbed 9680-A, made of durable cast iron with precision machining, delivers exceptional stability and accuracy for centered diesel pump mounting and testing.

- The Marbed 9423-U is a pair of brackets designed for secure and centered mounting of diesel injection pumps on Bosch-standard test benches.
- Compatible with Bosch part numbers 1 688 030 153 (56 mm radius) and 1 688 030 147 (45 mm radius).
- Supports various pump models, including PE..A, P7..(A), NP-PE..A.. Zexel, CMS... Sigma, CMX... Sigma, PE..P..800..., and more.

Der Flansch 9478-V4 gewährleistet die zentrierte Klemmung der Denso ECD-V4-Dieseleinspritzpumpen auf jedem Prüfstand.
Der Flansch erfordert eine 9680-A-Universalhalterung oder ähnliches.

Screw sealing varnish. Red color. 20 ml tube.
The essential tool for protecting, marking, sealing and locking all types of screws and as proof of tampering. Lackfabrik Bäder GmbH & Co. KG is specialized since 1962 in the production of sealing lacquers for screws (paints for sealing / marking) for many industries, in particular the automotive diesel.

Screw sealing varnish. blue color. 20 ml tube.
The essential tool for protecting, marking, sealing and locking all types of screws and as proof of tampering. Lackfabrik Bäder GmbH & Co. KG is specialized since 1962 in the production of sealing lacquers for screws (paints for sealing / marking) for many industries, in particular the automotive diesel.

Screw sealing varnish. Green color. 20 ml tube.
The essential tool for protecting, marking, sealing and locking all types of screws and as proof of tampering. Lackfabrik Bäder GmbH & Co. KG is specialized since 1962 in the production of sealing lacquers for screws (paints for sealing / marking) for many industries, in particular the automotive diesel.

Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.

Modułowy system do testowania bez wałkowych pomp PFR1K .., PFR2K .., PFR3K .. i PFR4K .. firmy Zexel.
Cambox można zamontować na dowolnym stanowisku testowym dla pomp wtryskowych oleju napędowego.
Ta konfiguracja jest dostarczana w jednym drewnianym pudełku.

Manual press for spring drive small blocks of the governor, BH P pumps bearings, CAV DPC-DPS bearings, BH EV/VE… bushings.

Specyfikacja techniczna:
- wysokość centrowania: 110 mm
- prowadnica 20 mm

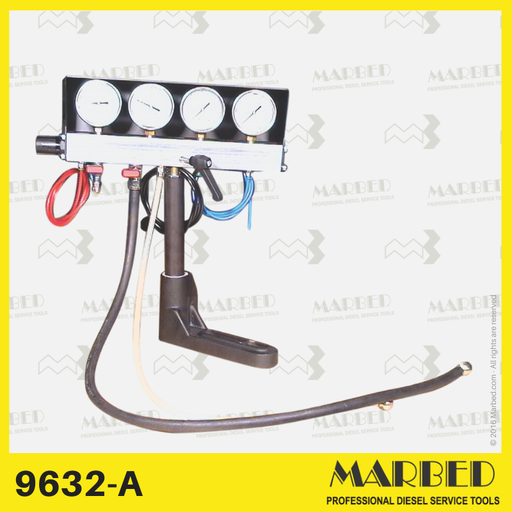

Pomocnicze zespoły manometrów do testowania pomp rotacyjnych na stanowisku badawczym

Interfejs do zamontowania na kołnierzu 8130 i 9478-CR do mocowania pomp Delphi cr jako R9042A040A lub R9042A014A i podobnych.
