Test bench accessories (1.)

Modular cambox, Zexel PFR..K , Zexel PFR.. KD, Zexel PFR..MD configuration.
Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)
The flange 9478-CP4 warrants the centered clamping of the CP4 pumps (Audi and Bmw applications), on any test bench. The flange requires 9680-A universal cradle or similar.
Universal centring flange for common rail pumps, with 4 rings.
The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.

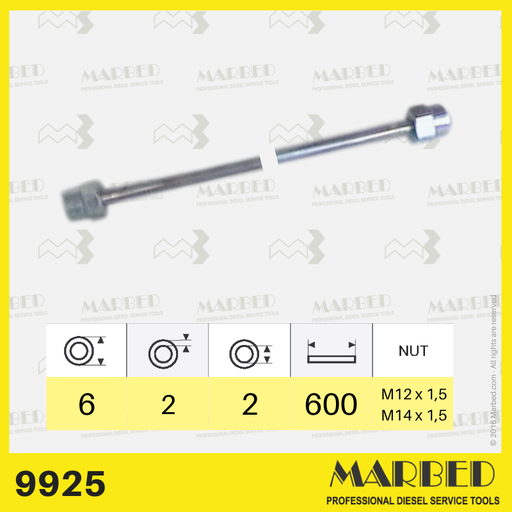

High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260
Drive coupling for DPA gear
Adapter interface for driving CAV DPA pumps (equipped with female splined shaft), by means of a 17 mm conical joint. Splined male interface, tapered male.
Cradle for Bosch test bench, center distance 125 - guide 20. Similar to 1 688 010 124
Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.

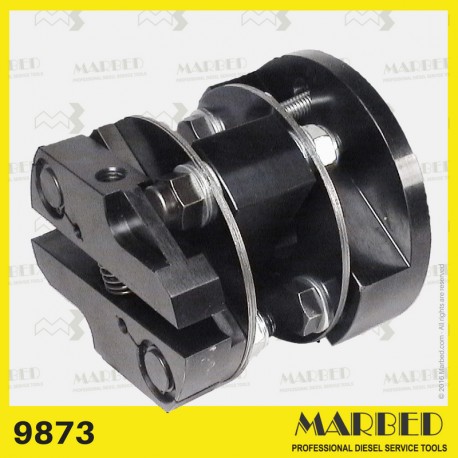

Anti backlash half-coupling according to ISO 4008/1, for diesel injection pump test benches.
Sealing pipe for the diesel injection service with M12x1.5 / M14x1.5 female coupling (on side of quick connection and immediate release). Female M14x1.5 mm coupling (on fixed side) and removable male fitting.
Unified rounded backet (radius 45 and 56mm) for A, B and P pumps

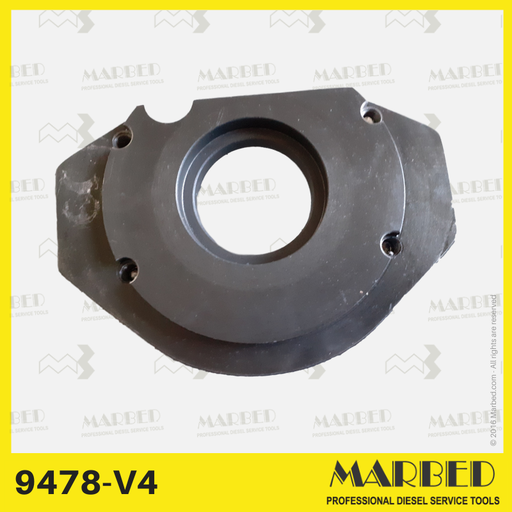

Centering flange for Denso ECD-V4 pumps.
The flange 9478-V4 warrants the centered clamping of the Denso ECD-V4 diesel fuel injection pumps, on any test bench.
The flange requires 9680-A universal cradle or similar.

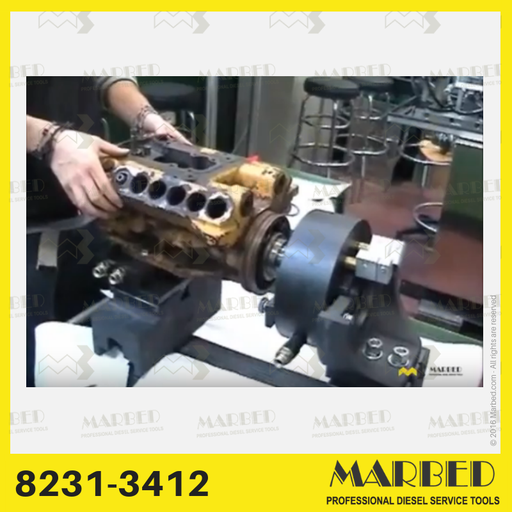

Solution to mount and drive Caterpillar 3412 pumps on hartridge AVM-PC test benches.
Tamper proof sealant. Red color.
Screw sealing varnish. Red color. 20 ml tube.
The essential tool for protecting, marking, sealing and locking all types of screws and as proof of tampering. Lackfabrik Bäder GmbH & Co. KG is specialized since 1962 in the production of sealing lacquers for screws (paints for sealing / marking) for many industries, in particular the automotive diesel.
Tamper proof sealant. blue color.
Screw sealing varnish. blue color. 20 ml tube.
The essential tool for protecting, marking, sealing and locking all types of screws and as proof of tampering. Lackfabrik Bäder GmbH & Co. KG is specialized since 1962 in the production of sealing lacquers for screws (paints for sealing / marking) for many industries, in particular the automotive diesel.
Tamper proof sealant. Green color.
Screw sealing varnish. Green color. 20 ml tube.
The essential tool for protecting, marking, sealing and locking all types of screws and as proof of tampering. Lackfabrik Bäder GmbH & Co. KG is specialized since 1962 in the production of sealing lacquers for screws (paints for sealing / marking) for many industries, in particular the automotive diesel.
ISO injectors holder
Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.
Modular cambox, Zexel PFR..K configuration.
Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)
Manual press
Manual press for spring drive small blocks of the governor, BH P pumps bearings, CAV DPC-DPS bearings, BH EV/VE… bushings.
Universal cradle to host the pump mounting flanges
Technical specifications:
- centering height: 110 mm
- guide 20 mm
Manometer unit
Auxiliary manometer unit to test rotary pumps on test bench
Fixing tool
Interface to be assembled on the flange 8130 and 9478-CR for fixing Delphi cr pumps as R9042A040A or R9042A014A and similars.
