  • This macro category organizes products for Common rail pumps and injectors into subcategories (on the left).
  • Subcategories enable you to progressively refine your search for specific products.



HYDRAULIC CONNECTION KIT FOR SIEMENS CR PUMPS
HYDRAULIC CONNECTION KIT FOR SIEMENS CR PUMPS. ITEMS INCLUDED:
Connection cable pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
ZME valve holder
Kit di connessioni idrauliche per pompe Denso HP3/HP4. Articoli inclusi:Cavo alimentazione pompaCavo di connessione pompe > flussometroSet di tubi alta pressione pompa > accumulatore
HYDRAULIC CONNECTION KIT FOR DENSO CR HP3/HP4 PUMPS. Items included:
Connection cable pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
HYDRAULIC CONNECTION KIT FOR DELPHI CR PUMPS
HYDRAULIC CONNECTION KIT FOR DELPHI DFP1/DFP2 CR PUMPS:
Connection cables pumps > flow-meter
Set of high pressure pipes
HYDRAULIC CONNECTION KIT FOR BOSCH CR PUMPS
HYDRAULIC CONNECTION KIT FOR BOSCH CP1/CP3/CP1H CR PUMPS. Items included:
Connection cables pumps > flow-meter
Cable for feeding pumps
Set of high pressure pipes
Splined socket wrench
Splined socket wrench for the low-pressure connections. Hole diam 10 mm ( BH 0 986 611 489)
ISO injectors holder
Holder for test bench, allowing to install 6+6 test injectors with 6 reinforced quick connections pipes for hight pressure application and male/female fittings - 20x1,5mm.
Splined socket wrench
Splined socket wrench for the low-pressure connections. Hole diam 12 mm ( BH 0 986 612 991 )

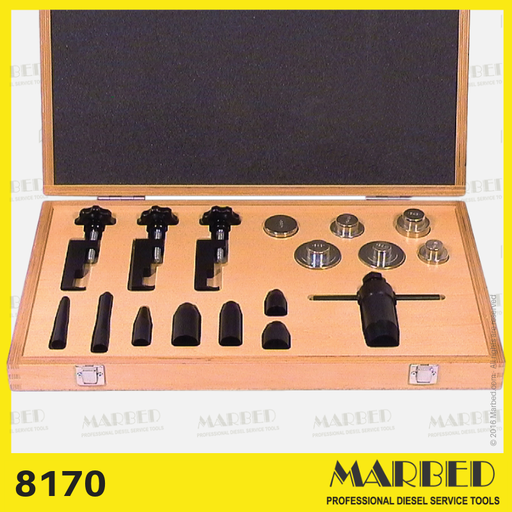

Caixa de ferramentas para reparar bombas CP1 / CP3 common rail
Conjunto de herramientas para bombas CP3. Se incluyen las siguientes herramientas:
8133 - Juego de herramientas para bloquear elementos de bombeo
8171 - Juego de 6 insertadores para juntas tóricas
8172 - Extractor retén eje (25mm)
8173 - Juego de 7 insertadores de juntas tóricas
Disassembly key
17 mm octagonal nozzle retaining nut wrench, 27mm hexagonal drive
Chave de soquete guiada para injetores VDO cr
Guided socket wrench for dismounting the internal ring-nut of the CR Siemens injector on Ford and Peugeot.
Inserters
Inserter bracket and oil seal for CP1 and CP3 pumps
Microscope
Microscope 100X with top and bottom lights
Calibrating shims box
Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors.
List of contents:
8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 0.01 mm (5 pcs each thickness)
Fixing tool
Interface a ser montada no flange 8130 e 9478-CR para fixação de bombas Delphi cr como R9042A040A ou R9042A014A e similares.
Wrench socket
N10 wrench socket for the valve retaining screw on Bosch CRIN 3 injectors, 1/2" drive.
Similar to 0 986 613 632
Disassembly key
20 mm octagonal nozzle retaining nut wrench, 27mm hexagonal drive. Similar to Bosch 0 986 613 458.
27 mm hexagon socket
27 mm hexagon socket wrench 1/2" drive for the solenoid retaining nut of Industrial Denso and Siemens Injectors
