Tools for diesel pumps (2.)

EUR (ecommerce)
Sort By: Featured

Tools for diesel pumps (2.)

Modular cambox, Zexel PFR..K , Zexel PFR.. KD, Zexel PFR..MD configuration.
Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)
The flange 9478-CP4 warrants the centered clamping of the CP4 pumps (Audi and Bmw applications), on any test bench. The flange requires 9680-A universal cradle or similar.
Universal centring flange for common rail pumps, with 4 rings.
The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.
Vice
Swivel vice for Common-rail pumps
Extractor for the bush of the pressure regulating valve
Corresponding to Bosch reference 0 986 611 562 - KDEP 1027, Zexel 157829-4620
Drive coupling for DPA gear
Adapter interface for driving CAV DPA pumps (equipped with female splined shaft), by means of a 17 mm conical joint. Splined male interface, tapered male.
Special tools (in wooden case) for the Bosch P size in-line pumps
CAV-DPC Tool box
Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).
Comparator holder M8x1 with pair of probes.
Similar to 0 986 611 754, KDEP 1085, 1 680 110 630.
Dial gauge bracket
Dial gauge bracket for rod stroke. Thread 24x1,5 protusion 18 mm for PE…P pumps
Cradle for Bosch test bench, center distance 125 - guide 20. Similar to 1 688 010 124
Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.
Adapter cable for testing and adjusting the M size Bosch in-line pumps equipped with RE22 regulator, applied on Mercedes-Benz. Similar to 0 986 610 115.
Adapter cable for testing and adjusting the P size Bosch in-line pumps equipped with RE30 regulator, applied on John Deere. Similar to 0 986 610 113.
Adapter cable for testing and adjusting the P and H size Bosch in-line pumps equipped with RE30 and RE33 regulator, applied on Scania. Similar to 0 986 610 114.
Adapter cable for testing and adjusting the Bosch in-line pumps equipped with RE30 regulator, applied on Man. Similar to 0 986 610 107.
Tools box
Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.

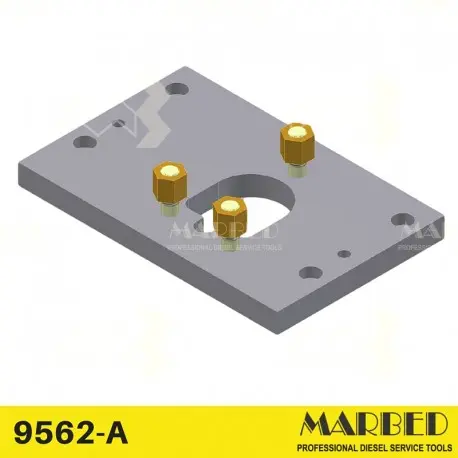

Calibrated plate for mounting the Zexel PFR..4K pumps, on 9562-M1 cambox.
Calibrated plate for mounting the Zexel PFR..4K pumps, on 9562-M1 cambox. Double side application.

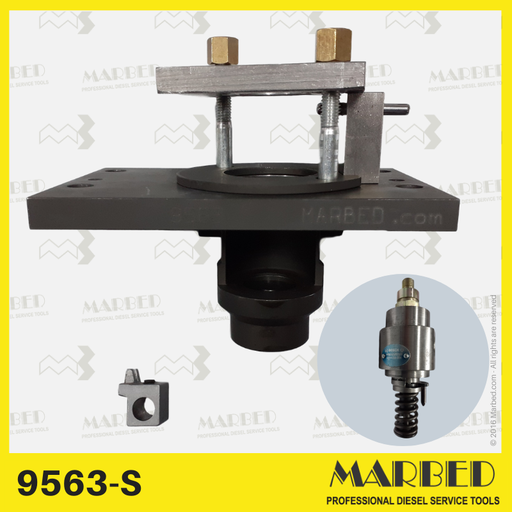

Support
Support for Bosch pumps PFM1A90S... (0 414 396 ...)

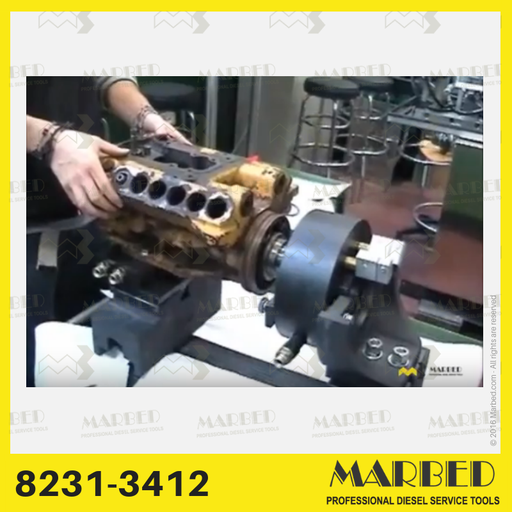

Solution to mount and drive Caterpillar 3412 pumps on hartridge AVM-PC test benches.
8133-C
