Essential equipment

The ERT45R Control Unit is the core of a universal testing system designed for electronically controlled diesel injection pumps, compatible with any test bench. This innovative simulator has been developed through extensive research, resulting in a versatile device that is programmable via smartcards (microchip cards). This feature aligns perfectly with modern operational requirements.
The ERT45R is a long-term investment, allowing for easy expansion through a selection of available programming kits—21 options are currently available. Each kit includes a programming card (software), a detailed instruction manual with step-by-step illustrations, base cables (2 meters in length), and adapter cables tailored for specific pump connectors. With a straightforward setup, at least one programming kit is necessary for functionality, making the ERT45R an essential tool for professionals seeking to enhance their testing capabilities while ensuring flexibility and efficiency in their work environment.

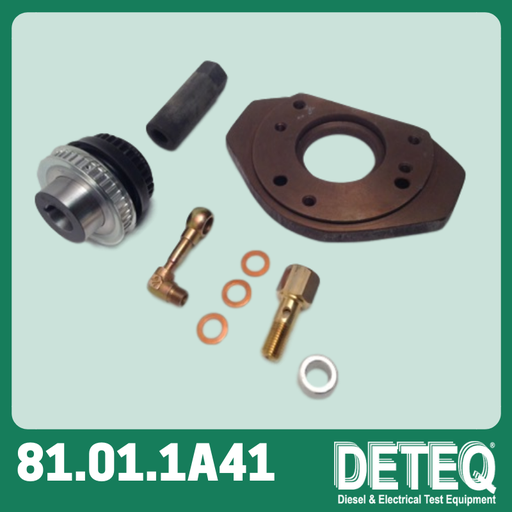

The following components are provided:
- Centering bracket: mounting flange Ø 50mm
- Coupling system: hub Ø20mm with pulley (pump side)
- fittings for transfer pressure measurement

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V5 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

This device is necessary to make any test bench compatible for the essential requirements of controlling the digitally controlled pumps (Bosch VP44-VR30, Delphi DP210 and Epic, Denso ECD-V3/V4/V5).
Furthermore, the special coupling system (bench side) is provided in order that once the adjustiment of the pump timing is done, no rotation is necessary for the removal of the pump from the test bench.

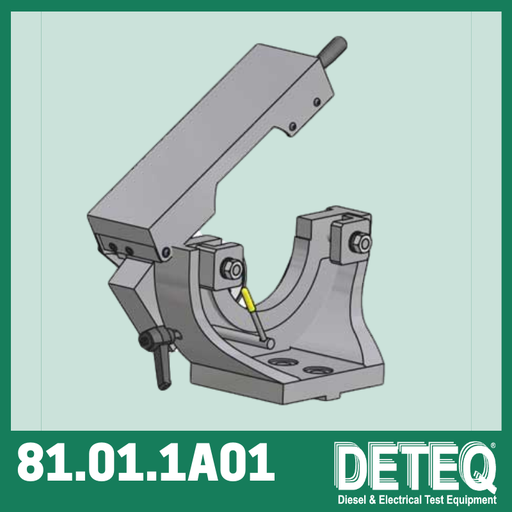

The bracket is suitable to be installed on any test bench having center of the rotation axel at 125 mm from the base. In other cases, specific spacers are available.
