TC38 - Triggering unit for common-rail injectors
TC38 - Injector triggering unit for common-rail injectors.
This unit has been developed as a module, to be used in two main applications:
- in conjunction with the DIT31 test bench, to test any common rail injector
- in conjunction with the ERT45R simulator, to make running the complete common rail system (pump+rail+injectors) on any test bench.
Main features:
- Triggering command for electromagnetic actuators (always provided)
- Triggering command for piezoelectric actuators (provided as optional, by the CRP extension)
- Ready to multiple injection technology (pre-injection, main injection, recovery injection)
- no manual adjustment is required, in fact all the parameters necessary to generate the appropriate pulse(s) are memorized in special smartcards (triggering cards)
- Basic triggering cards are provided to acquire the test parameters of any brand new injector. These figures can be used to compare the test results of injectors having the same part number.
- In addition to the basic triggering cards, specific triggering cards (complete with ready-to-use test data) are available for the some of Bosch, Delphi, and Denso injectors.
- when used with ERT45R simulator, the RPM input is available for the dynamic triggering till 4 injectors, automatically in specific way at different speeds. Multiples of additional 4 injectors can be added, as option.
- 24 months warranty. User's and servicing manual.
Corso di formazione per l'utilizzo del simulatore ERT45R e del kit per la prova delle pompe Delphi DPCN.
Training service for the use of the ERT45R Simulator with the kits for the test of DELPHI DPCN pumps. This is not a full training concerning the complete overhault of this pump.
The matters of this training are the following:
- Performance features of the products
- Details and installation problems
- Methods of use
- Maintenance
- Practice with the help of DETEQ technicians. The participants will be first instructed and then followed step by step by our technical personnel for practical exercises.
- Location: in Italy at DETEQ headquarter
- Duration: 1 day (8 working hours)
- Maximum number of attenders: 2 diesel specialists having skills on this type of pump
- Is held in English Language
- Individual Certificate of Training is delivered.
Training course for the use of DIT31&TC38 Injector tester for the testing of traditional, double spring and common rail injectors ( equipped with electromagnetic and piezoelectric actuator ).
Training course for the use of DIT31&TC38 Injector tester for the testing of traditional, double spring and common rail injectors ( equipped with electromagnetic and piezoelectric actuator ).

Service features:

- The training course will take place in Italy at DETEQ headquarter
- Duration of 1 day ( 8 working hours )
- Maximum for 2 participants
- Is held in English Language
- The standard training is destined to participants already operators of diesel systems.
- Is excluded the technical instruction on the technology of the components which are object of the machine operativity. This kind of service can be provided only upon agreement with DETEQ.
-At the end of the training will be issued a frequency profit Certificate

The course includes the training provided by DETEQ Technicians, for:
- Performance features of the products
- Details and installation problems
- Methods of use
- Maintenance
- Practice with the help of DETEQ technicians. The participants will be first instructed and then followed step by step by our technical personnel for practical exercises.
Cavo adattatore pompe BH VE..L694-1 (CHRYSLER) (rif. BH 0 986 612 445)
Adapter cable for BH pumps L694, VE..L694-1, VE..R707 (CHRYSLER) - 0 986 612 445, fitted with test data
Cable for advance valve
Adapter cable for advance valve of Bosch rotary pumps on Volkswagen applications ( BH 0986611983 )
DP200 Advance reader adpter
Adapter for use the advance reader sensor on Delphi DP200 injection pumps
Cable adaptador
Adapter cable for Bosch Ve pumps on Mercedes
Similar to Bosch 0 986 612 698.
Cavo adattatore pompe BH VE (Rif. BH 0 986 612 437 - KDEP 1865/8) - ROVER
Adapter cable for BH pumps VE..R 500, VE..L 580, VE..L 580-1, VE..R500-1, VE.. R720 (Rover) - 0 986 612 437, fitted with test data
Adapter cable with test data for Bosch VE..R 260 on BMW
Similar to Bosch reference 0 986 612 433 - KDEP 1865/4
MM - Multimeter
MM - Palmar multimeter for EDC tests
Guided socket wrench
Guided socket wrench for the valve retaining screw on Denso cr injectors.
Wrench socket
N12 wrench socket for the valve retaining screw on Bosch CRIN 3 injectors, 1/2" drive.
Similar to 0 986 613 631
12-side socket wrench
27 mm 12-side socket wrench 1/2" drive for the solenoid retaining nut.
Similaro to Bosch 0 986 613 185.
M.10019-KD
Professional tool to safely open/close the nozzle nut on common rail and two spring injectors - Digital gauge
Dial gauge full scale: 2000 Kg
Maximum load on injector body: 500 Kg.
Transistored ultrasonic box
Transistored ultrasonic box with automatic setting. Made of stainless steel with a capacity of 6,4 litres for special fluid for components.
The box is equipped both with heater and timer and it is supplied with a stainless steel basket for containing parts and 4 fluid bottles.
Technical features:
- inside dimension: cm 32,4*17,8*27,9
- frequency 60 kHz
- Capacity 6,4 litres
- 135 W - 335 W peak
Box of calibrating shims and tools
Assortment of 850 calibrating shims for Bosch CRI and CRIN injectors, with 5 useful tools.
List of contents:
8210-T1, ball handling tool
8210-T2, antimagnetic pair of pliers
8210-T3, ring inserter
8210-T4, valve interter
8210-T5, ring extractor

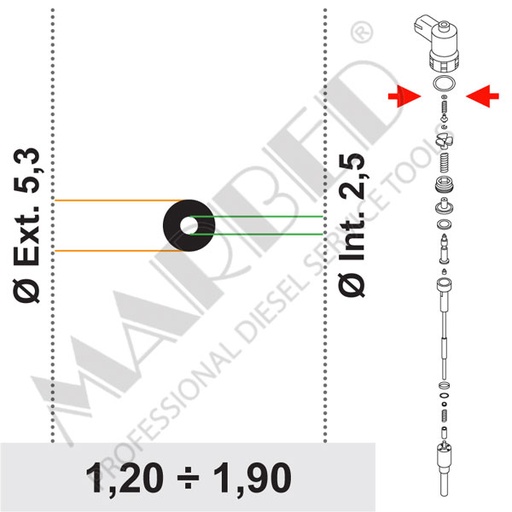

8210-R04 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)

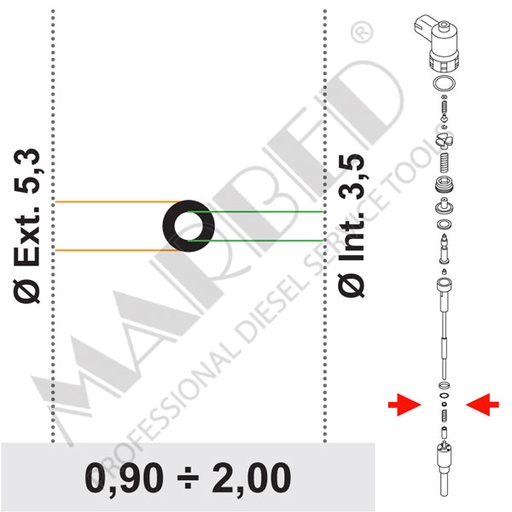

8210-R05 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R06 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R07 from 1.20 to 1.66, every 0,02 mm (5 pcs each thickness)
8210-R13 from 1.14 to 1.25, every 0,01 mm (5 pcs each thickness)
8210-R28 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R29 from 8.40 to 8.51, every 0,01 mm (5 pcs each thickness)
8210-R34 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R35 from 0.99 to 1.10, every 0,01 mm (5 pcs each thickness)
8210-R41 from 1.19 to 1.10, every 1.30 mm (5 pcs each thickness)
