Test bench accessories (1.)

Reinforced quick release connection nozzle holder side

Technical specifications:
- capacity: 0-30 cc.
- external diameter: 17 mm
- length: 240 mm

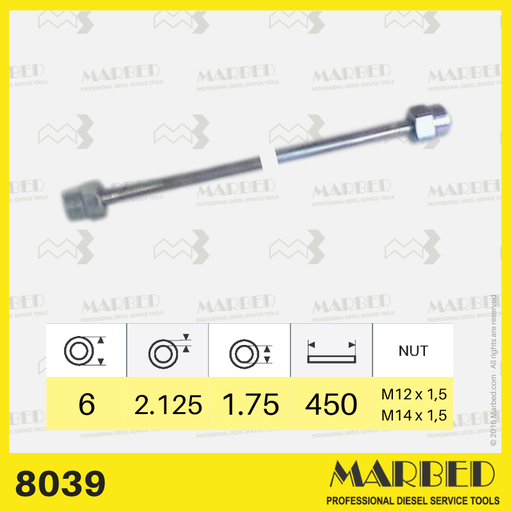

Specifications:
- external diameter: 6 mm
- internal diameter: 1,75 mm
- thickness: 2,125 mm
- length: 450 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Hartridge AHP133

Similar to Bosch genuine reference 0 986 611 240 (KDEP 2916)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 19 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in three wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyls Camshaft 7 mm (9564-A) and 6 mm (9564-B)
- 1 cyl Camshaft (9564-C)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 1 cyl. (9562-N)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and controller (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- plate for Yanmar 3 cil pumps (TD9001)
- plate for Yanmar 3 cil pumps (TD9003)
- plate for Yanmar 2 cil pumps (TD9004)
- plate for Bosch PFM..1P pumps (9562-P)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Specifications:
- external diameter: 6 mm
- internal diameter: 1,5 mm
- thickness: 2,25 mm
- length: 710 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Hartridge AHP134

Rislan flex.hose with quick connections on male/female fitting 20x1,5

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Bosch.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4)
- 4 cyl camshaft (9564-A)
- Fixing plate for Bosch PFR .. 1K (9562-A)
- Fixing plate for Bosch PFR .. 2K (9562-C)
- Fixing plate for Bosch PFR .. 3K (9562-D)
- Fixing plate for Bosch PFR .. 4K (9562-E)
- Rod (9562-F) and fuel control connector (9562-G)
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

सर्पिल वायर रस्सी: सर्पिल वायर रस्सी मुड़े हुए और सर्पिल रूप से लिपटे धातु के तारों से बनी होती है, जो एक मजबूत, लचीली संरचना बनाती है। अनधिकृत छेड़छाड़ के खिलाफ दृश्य सबूत प्रदान करने के लिए अक्सर लीड सील और सीलिंग प्लायर्स के साथ संयोजन में उपयोग किया जाता है।

लीड सील का उपयोग अनजाने में होने वाली छेड़छाड़ को रोकने के लिए किया जाता है। सीलिंग प्लायर्स के माध्यम से लगाए जाने पर, ये सील किसी भी अनधिकृत हेरफेर के खिलाफ दृश्य आश्वासन प्रदान करते हैं ताकि किए गए अंशांकन की अखंडता सुनिश्चित हो सके। लीड की लचीलापन इसे वायर रोप के साथ समेकित करने की अनुमति देता है, इस प्रकार एक एकल और प्रतिरोधी दृश्य तत्व बनाता है।

Standard column clamp to fix B pumps on test bench (BH ref. 1 688 120 022)

Ø95 mm (réf. BH 1 685 720 060 )

High-precision machined cast iron flange with a 107 mm hub diameter. Compatible with PES..P..RS 192 diesel injection pumps, Bosch 1 685 720 159, and Marbed mounting systems for efficient pump testing and maintenance.

High-precision machined cast iron flange with a 68 mm hub diameter. Compatible with PES..AS 151/155, ..S418, PES..M.., VE..F..L19, PES... MW pumps (MERCEDES, VOLVO etc.) pumps, Bosch 1 685 720 018, and Marbed mounting systems for efficient pump testing and maintenance.

Precision-crafted flange with a 50 mm hub diameter for diesel pump alignment. Compatible with EP / VM, EP / VA, PL 04.. (Mini), NP-VE Zexel, VE..F.., VE..E.., Bosch 1 685 720 062, and the Marbed 9680-A, 9601, and pivotable swivel base Marbed 9260 systems.

Clamp to fix our coupling 9747 on the test bench ( KDEP 1545)
