205 tools for camshaftless pumps

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.

Calibrated plate for mounting the Zexel PFR..4K pumps, on 9562-M1 cambox. Double side application.

Support for Bosch pumps PFM1A90S... (0 414 396 ...)

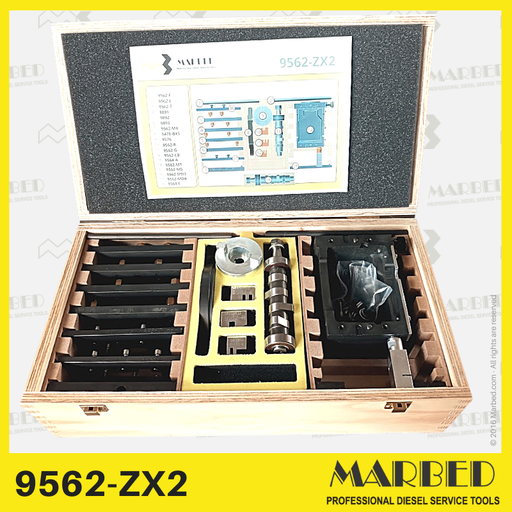

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

New version of the b racket 9562-S. This revised design is suitable for the PFM1P100 pumps and the 0 141 401 106 as well.

The adapter can be also used for DTC determination and timing setting. Similar to Lombardini 1460.074.

Tool box for timing of BOSCH-PDM1Q60F V pump on Focs engine

It applies on any test bench for diesel fuel injection pumps.

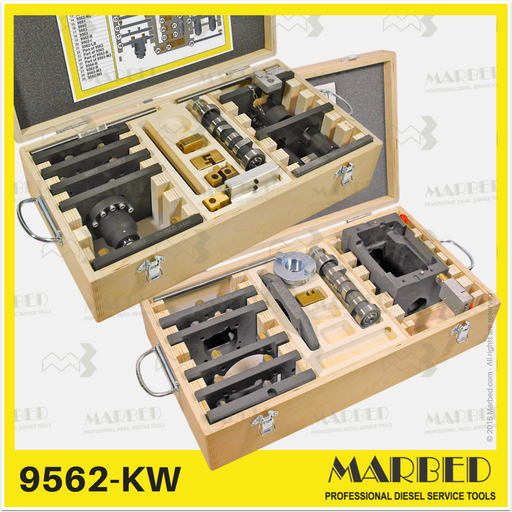

Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 19 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in three wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyls Camshaft 7 mm (9564-A) and 6 mm (9564-B)
- 1 cyl Camshaft (9564-C)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 1 cyl. (9562-N)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and controller (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- plate for Yanmar 3 cil pumps (TD9001)
- plate for Yanmar 3 cil pumps (TD9003)
- plate for Yanmar 2 cil pumps (TD9004)
- plate for Bosch PFM..1P pumps (9562-P)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Bosch.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4)
- 4 cyl camshaft (9564-A)
- Fixing plate for Bosch PFR .. 1K (9562-A)
- Fixing plate for Bosch PFR .. 2K (9562-C)
- Fixing plate for Bosch PFR .. 3K (9562-D)
- Fixing plate for Bosch PFR .. 4K (9562-E)
- Rod (9562-F) and fuel control connector (9562-G)
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Patent fixing clamp for BOSCH nozzle-pump PDM 1Q60F V on Focs engine.
