Centered mounting (110)

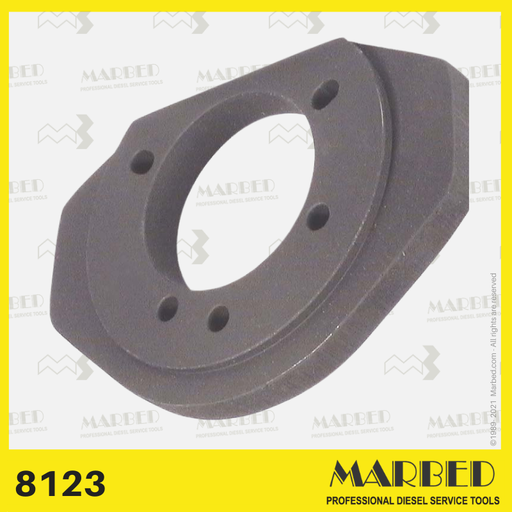

Flange for fixing VP44/VR30 pumps on test benches. It requires the universa bracket 9680-A)

Pair of brackets to fix VP44 pumps on the test bench (Audi application)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 19 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in three wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyls Camshaft 7 mm (9564-A) and 6 mm (9564-B)
- 1 cyl Camshaft (9564-C)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 1 cyl. (9562-N)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and controller (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- plate for Yanmar 3 cil pumps (TD9001)
- plate for Yanmar 3 cil pumps (TD9003)
- plate for Yanmar 2 cil pumps (TD9004)
- plate for Bosch PFM..1P pumps (9562-P)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Bosch.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4)
- 4 cyl camshaft (9564-A)
- Fixing plate for Bosch PFR .. 1K (9562-A)
- Fixing plate for Bosch PFR .. 2K (9562-C)
- Fixing plate for Bosch PFR .. 3K (9562-D)
- Fixing plate for Bosch PFR .. 4K (9562-E)
- Rod (9562-F) and fuel control connector (9562-G)
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

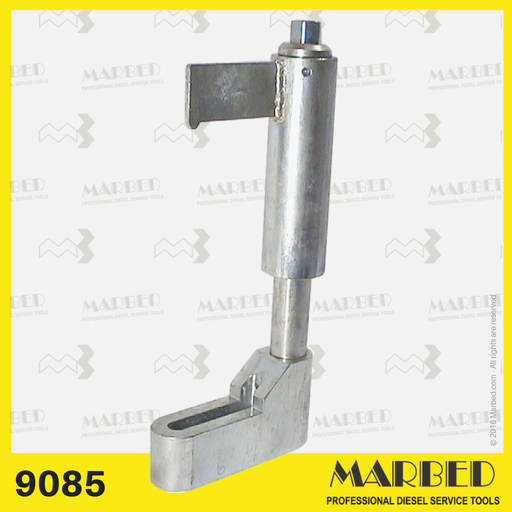

Standard column clamp to fix B pumps on test bench (BH ref. 1 688 120 022)

Ø95 mm (réf. BH 1 685 720 060 )

diam.107 mm ( Similar to BH 1 685 720 159)

Test bench flange for PES... MW pumps (MERCEDES, VOLVO etc.) with Ø 68 hole

Test bed flange for EP/VA.. VE ..CAV DPA-DPC pumps Ø50 mm (BH 1 685 720 062)

Bosch test bench brackets for B pumps - radius 56 mm ( BH 1688030012)

(BH ref. 1 685 720 017)
