Essential equipment

ERT45R控制單元
ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。

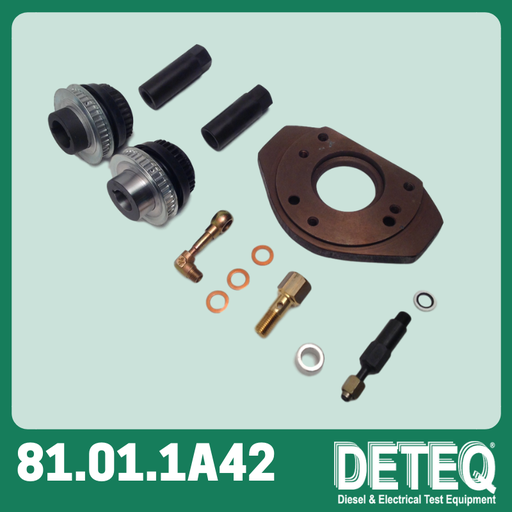

Integrating kit for 81.01.1A01, on Denso ECD V3/V4 pumps.
Integrating kit for 81.01.1A01, on Denso ECD V3/V4 pumps.
The following components are provided:
- Centering bracket: mounting flange Ø 50mm
- Coupling system: hub Ø20mm with pulley (pump side)
- Coupling system: hub Ø25mm with pulley (pump side)
- fittings for transfer pressure measurement on V3 pumps
- fittings for transfer pressure measurement on V4 pumps

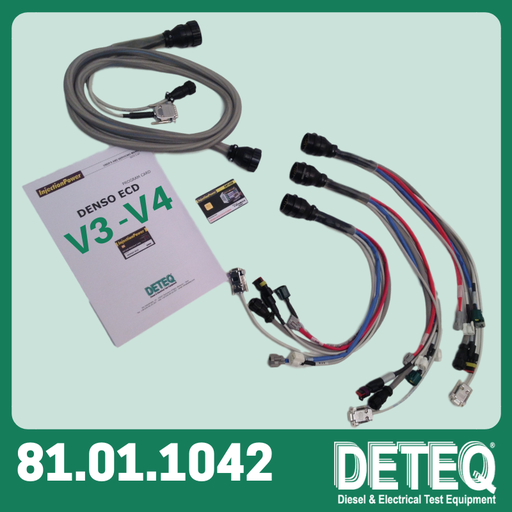

ERT45R programming kit to test the rotary Denso ECD-V3/V4 pumps.
Kit for testing rotary Denso ECD-V3/V4 pumps.The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V3/V4 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

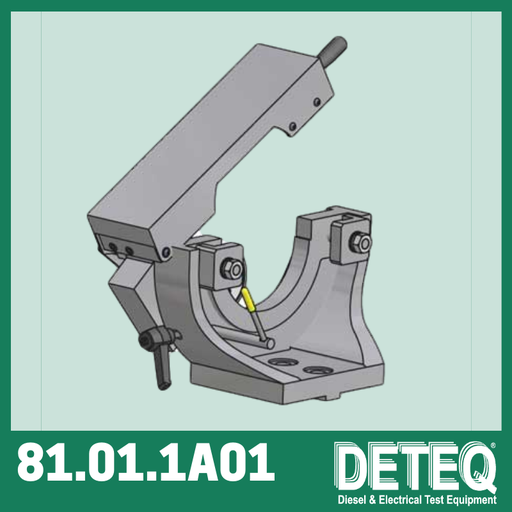

Centering mounting bracket, equipped with an electronic angular reader (resolution 0,01°).
This device is necessary to make any test bench compatible for the essential requirements of controlling the digitally controlled pumps (Bosch VP44-VR30, Delphi DP210 and Epic, Denso ECD-V3/V4/V5).
Furthermore, the special coupling system (bench side) is provided in order that once the adjustiment of the pump timing is done, no rotation is necessary for the removal of the pump from the test bench.
The bracket is suitable to be installed on any test bench having center of the rotation axel at 125 mm from the base. In other cases, specific spacers are available.
