InjectionPower 忠诚计划是专门为那些从事泵和喷油器维修的人员设计的优势平台，计划投资超过 5000 欧元以实现卓越。
提供 STARTER、PREMIUM 和 ELITE 配置文件。
会员资格每年自动更新。

>> >请参阅各层的详细功能和优势，如下所述。

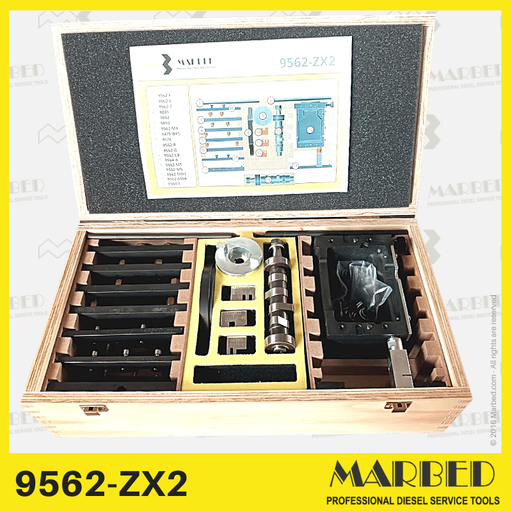

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

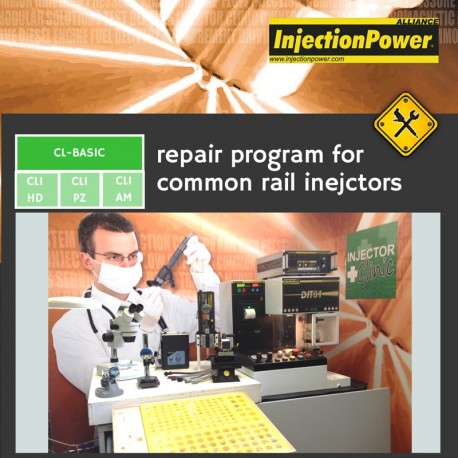

The Injector Clinic Basic module includes:
- Test bench for testing injectors individually, one by one
- Triggering unit programmable, by microchip cards
- Cables for electromagnetic Bosch, Delphi, Denso injectors
- Training course with the release of the vocational qualification certificate
- Assorted calibrating shims for Bosch injectors
- Station for measuring thicknesses (with digital millesimal gauge)
- Precision instrument for detecting the ball lift
- Ultrasonic cleaning box
- Magnifier on adjustable arm, with built-in lighting
- Tool for regenerating the ball seat valves (Bosch)
- Professional microscope

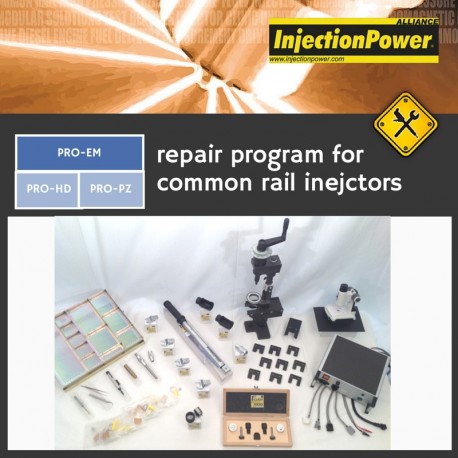

The Pro-EM module includes the supply of specific tools for maintenance the Bosch, Delphi, Denso electromagnetic common rail injectors. In details:
- Universal operational station
- Torque wrench
- sockets for actautor and valves
- Tools for assembly / disassembly
- testing device for electromagnetic actuators

ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。

High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.

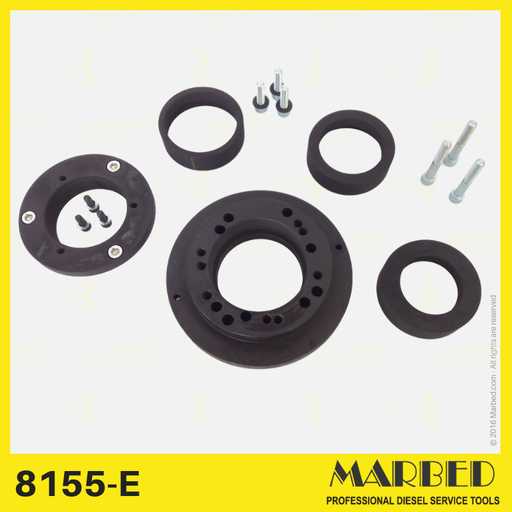

The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.

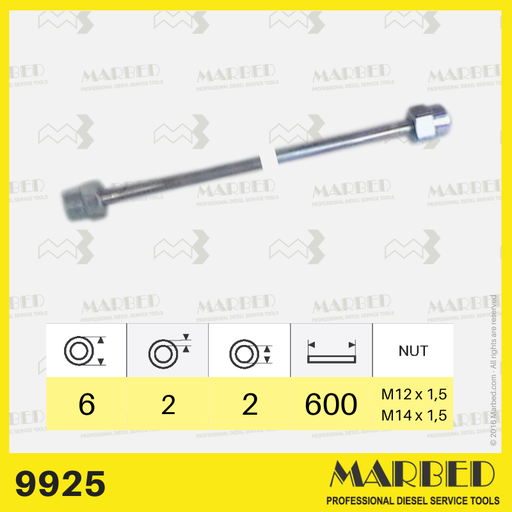

Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260

Swivel vice for Common-rail pumps

Corresponding to Bosch reference 0 986 611 562 - KDEP 1027, Zexel 157829-4620

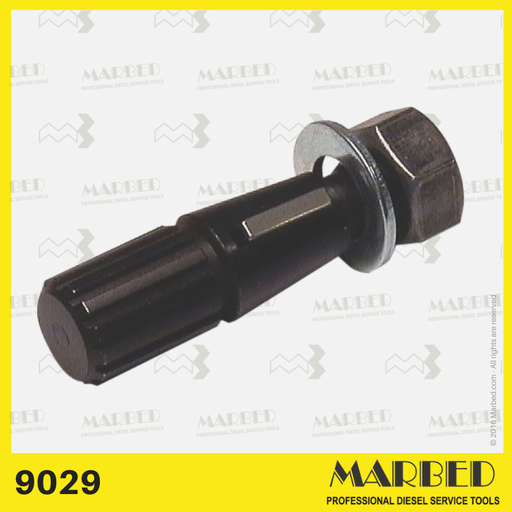

用于通过 17 mm 锥形接头驱动 CAV DPA 泵（配备内花键轴）的适配器接口。 花键外螺纹接口，锥形外螺纹。

Reinforced swivel base, for mounting / dismounting the injection pumps at the workbench.

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Hand pump for calibrating and checking the operations of the diesel injectors
- precise adjustment of the injection pressure (adjust the opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 -> 400 bars.
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm

Similar to 0 986 611 754, KDEP 1085, 1 680 110 630.

Two handles spanner eyelet 17 mm, eyelet 19 mm, eyelet 22 mm, hex. 22 mm

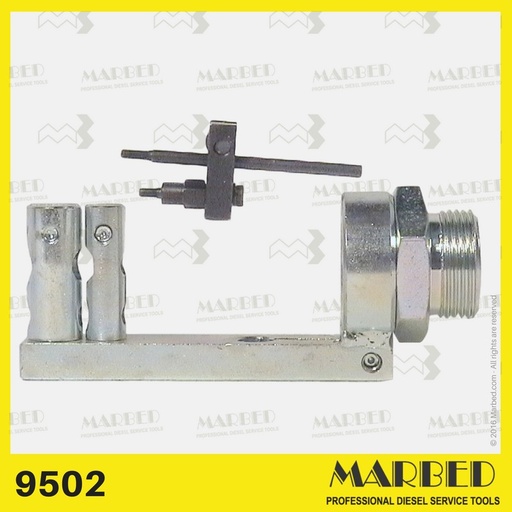

Dial gauge bracket for rod stroke. Thread 24x1,5 protusion 18 mm for PE…P pumps

Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.
