Specialized Diesel Test Equipment

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

تعد وحدة التحكم ERT45R جوهر نظام الاختبار العالمي المصمم لمضخات حقن الديزل التي يتم التحكم فيها إلكترونيًا، والمتوافقة مع أي منصة اختبار. لقد تم تطوير هذا المحاكي المبتكر من خلال أبحاث مكثفة، مما أدى إلى جهاز متعدد الاستخدامات قابل للبرمجة عبر البطاقات الذكية (بطاقات الرقائق الدقيقة). تتوافق هذه الميزة تمامًا مع متطلبات التشغيل الحديثة.
يعد ERT45R استثمارًا طويل الأجل، مما يسمح بالتوسع بسهولة من خلال مجموعة مختارة من مجموعات البرمجة المتاحة — 21 خيارًا متاحًا حاليًا. تشتمل كل مجموعة على بطاقة برمجة (برنامج)، ودليل تعليمات مفصل مع رسوم توضيحية خطوة بخطوة، وكابلات أساسية (طولها 2 متر)، وكابلات محول مصممة خصيصًا لموصلات مضخة محددة. من خلال الإعداد المباشر، تكون مجموعة برمجة واحدة على الأقل ضرورية للوظائف، مما يجعل ERT45R أداة أساسية للمحترفين الذين يسعون إلى تعزيز قدرات الاختبار الخاصة بهم مع ضمان المرونة والكفاءة في بيئة عملهم.

Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.

The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.

باعتباره أحد المكونات الرئيسية لطريقة اختبار ERT45R، يتميز مقياس التدفق FL400/A بقدرات قياس مزدوجة، لمراقبة معدل التدفق إلى سكة الضغط العالي وتدفق العودة بشكل بديل.

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 19 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in three wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyls Camshaft 7 mm (9564-A) and 6 mm (9564-B)
- 1 cyl Camshaft (9564-C)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 1 cyl. (9562-N)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and controller (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- plate for Yanmar 3 cil pumps (TD9001)
- plate for Yanmar 3 cil pumps (TD9003)
- plate for Yanmar 2 cil pumps (TD9004)
- plate for Bosch PFM..1P pumps (9562-P)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Bosch.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4)
- 4 cyl camshaft (9564-A)
- Fixing plate for Bosch PFR .. 1K (9562-A)
- Fixing plate for Bosch PFR .. 2K (9562-C)
- Fixing plate for Bosch PFR .. 3K (9562-D)
- Fixing plate for Bosch PFR .. 4K (9562-E)
- Rod (9562-F) and fuel control connector (9562-G)
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Plate for BOSCH 1 cyl.pump with location clamp for determining the delivery start ratio, with rod guide

Plate for 4 K pump

Plate for 3 K pump

Plate for 2 K pump

Plate for 1 K pump

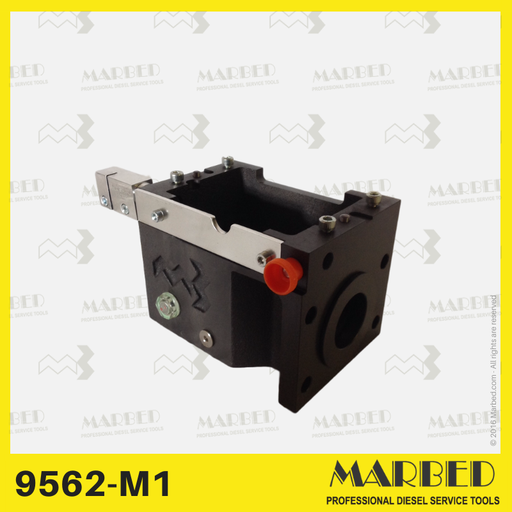

Cambox universal base to house camshaftless pumps up to 4 cylinders on the test bench.
The cambox must be configured correctly (mounting plate, thickness - if required -, camshaft, control lever connection, sliding rod), depending on the type of pump to be tested.
