InjectionPower 忠诚计划是专门为那些从事泵和喷油器维修的人员设计的优势平台，计划投资超过 5000 欧元以实现卓越。
提供 STARTER、PREMIUM 和 ELITE 配置文件。
会员资格每年自动更新。

>> >请参阅各层的详细功能和优势，如下所述。

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.

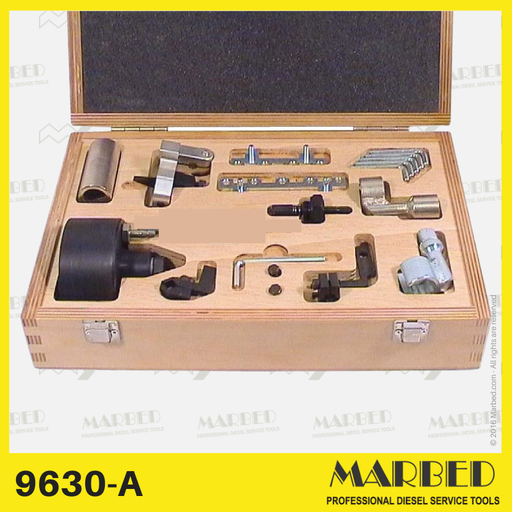

This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。

High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.

The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.

Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260

Swivel vice for Common-rail pumps

Reinforced swivel base, for mounting / dismounting the injection pumps at the workbench.

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Hand pump for calibrating and checking the operations of the diesel injectors
- precise adjustment of the injection pressure (adjust the opening pressure of the injection nozzle)
- control of the spray atomization (pattern and vibration characteristics)
- control tightness (leaks)
- equipped with bypass valve for the manometer.
Dial: 0 -> 400 bars.
Tank fitted with a filter
Supplied with 2 connection pipes: 14-14 and 14-12 mm

Dial gauge bracket for rod stroke. Thread 24x1,5 protusion 18 mm for PE…P pumps

Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.

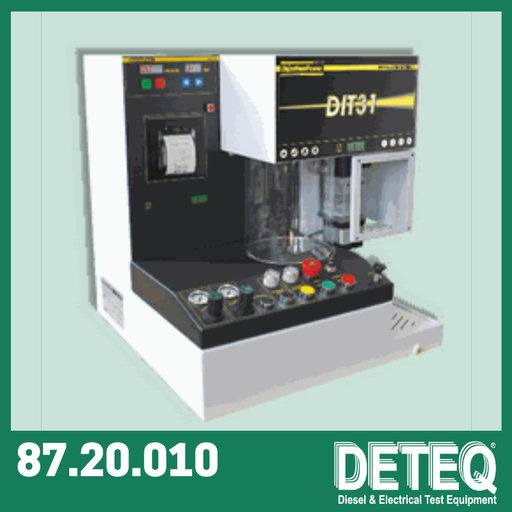

The test bench DIT31 is a modular solution to test the common rail injectors (the additional TC38 triggering unit is required) as well as the conventional and 2 stage (double spring) diesel injectors.
The applied technology allows the test parameters to be determined reliably on each injection, with greater precision and resolution than using on average long test cycles to collect a measurable quantity of fuel.

Main features:
- Main tank 3 lt. with 15 micron filter
- Separated container for the collection of the contaminated liquid
- Large atomization chamber with smoke extraction and halogen lamp
- Pneumatic operated pump unit, the standard version is suitable up to 1400 BAR (compressed air 8-10 BAR is required). Special versions can be installed as optional to generate more pressure and flow.
- Pneumatic vice for the automatic clamping of the injector
- Digital manometer with the reading scale selection (BAR/PSI)
- Printer to generate the test report
- Program for conventional injectors: (1) measurement of the NOP (nozzle opening pressure) and calculation of the back-leakage time.
- Program for Double-spring injectors: (2) measurement of the NOP1 (1st stage) and NOP2 (2nd stage), calculation of the back-leakage time and determination of the K factor.
- 2 programs for common rail injectors: (3) identification of the return flow (leakage time), (4) of the opening delay, the injection time and the injected fuel quantity (dp).
- 24 months warranty. User's and servicing manual in English language.

Tests and ohmic measurements should be obtained with a multimeter, to be used in conjuction with OTA.
The measuring point are fixed, so that the operator has the hands free.
The combination of the electric contacts is obtained by easily rotating the two knobs, like a game.
Function similar to Bosch 0 986 611 929.

Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.

Similar to Bosch genuine ref. 0 986 611 249, KDEP 2919/1
