Kits e Pacotes

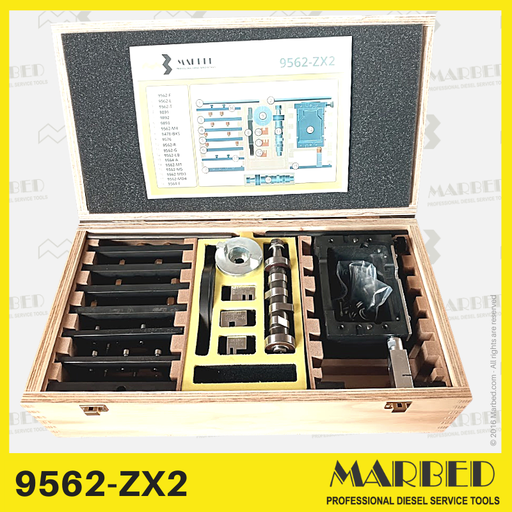

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

O flange 8155-E garante a fixação centralizada da maioria das bombas cr (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), em qualquer bancada de testes.
O flange é equipado com 4 anéis de redução para encaixar os diâmetros do cubo de 50, 60, 68, 80 mm, bem como as bombas CP1K.
O flange requer berço universal 9680-A ou similar.

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.

Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

Size A in-line fuel injection pump service tools panel

Sistema modular para testar as bombas sem eixo de cames do tamanho PFR1K .., PFR2K .., PFR3K .. e PFR4K .. fabricadas pela Zexel.
O cambox pode ser aplicado em qualquer banco de ensaio para as bombas de injeção de combustível diesel.
Esta configuração é fornecida em uma caixa de madeira.

Tools kit for RQV-RSV pumps testing

Conjunto de herramientas para bombas CP3. Se incluyen las siguientes herramientas:
8133 - Juego de herramientas para bloquear elementos de bombeo
8171 - Juego de 6 insertadores para juntas tóricas
8172 - Extractor retén eje (25mm)
8173 - Juego de 7 insertadores de juntas tóricas

Special tool for the disassembly and the aligned mounting of the nozzle and for preserving the pins from breaking during the rotation of the nozzle nut.
The tool is equipped with analogic gauge for the reference of the force applied on the injector body.
Similar to 0 986 610 130

Ready for external lubrication by oil.

Este conjunto completo combina a potência de nossa prensa 9376-D operada manualmente de 20 toneladas com três kits de conformação versáteis, fornecendo a solução definitiva para suas necessidades de reparo de tubos.
Quer você esteja lidando com tubos de injeção tradicionais ou common rail, este pacote garante que você tenha as ferramentas certas à sua disposição.
Peso: 42kg aproximadamente
Dimensões: cm 40x30x56h

Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

Tool box for timing of BOSCH-PDM1Q60F V pump on Focs engine

Extended configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Montagem manométrica para o teste de bancada LDA. Manômetro de 0-2,5 harmonizado, resistente ao choque com mecânica de aço inoxidável.

Aplica-se a qualquer bancada de testes para bombas de injeção de diesel.
Combinando o Cambox com placas adicionais e espaçadores, é obtido um sistema completo para testar até 19 tipos de bombas imersas fabricadas pela Bosch, Denso e Zexel.

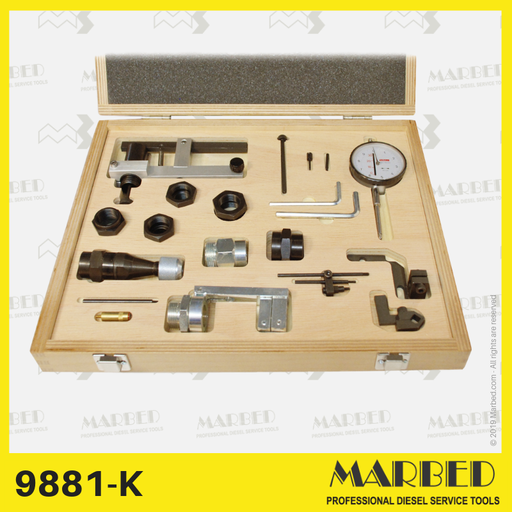

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on
