키트 및 번들

Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.

Tool box for assembly, disassembly and timing of CAV DPC pumps (17 particulars).

Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.

Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

Size A in-line fuel injection pump service tools panel

Modular system for testing the PFR1K.., PFR2K.., PFR3K.. and PFR4K.. size camshaftless pumps manufactured by Zexel.
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshaft (9564-A)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G,9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

Tools kit for RQV-RSV pumps testing

Toolset for CP3 pumps. The following tools are included:
8133 - Clamping tool set for the pumping elements
8171 - Set of 6 sealing ring inserters
8172 - Puller for the shaft sealing ring (25mm)
8173 - Set of 7 O-ring inserters

Special tool for the disassembly and the aligned mounting of the nozzle and for preserving the pins from breaking during the rotation of the nozzle nut.
The tool is equipped with analogic gauge for the reference of the force applied on the injector body.
Similar to 0 986 610 130

Ready for external lubrication by oil.

이 모든 것이 포함된 세트는 20톤 수동 작동식 9376-D 프레스의 성능과 세 가지 다용도 성형 키트를 결합하여 파이프 수리 요구 사항에 맞는 최고의 솔루션을 제공합니다.
기존 주입 파이프나 커먼 레일 주입 파이프 중 무엇을 사용하든 이 번들은 귀하가 원하는 대로 사용할 수 있는 올바른 도구를 제공합니다.
무게: 약 42kg
크기: cm 40x30x56h

Toolset for the manual grinding and lapping of the ball seat on Bosch CRI and CRIN valves.

Tool box for timing of BOSCH-PDM1Q60F V pump on Focs engine

Extended configuration of special holders, probes and comparator (in wooden case) for the phasing of the Bosch VE rotary pumps.

It applies on any test bench for diesel fuel injection pumps.

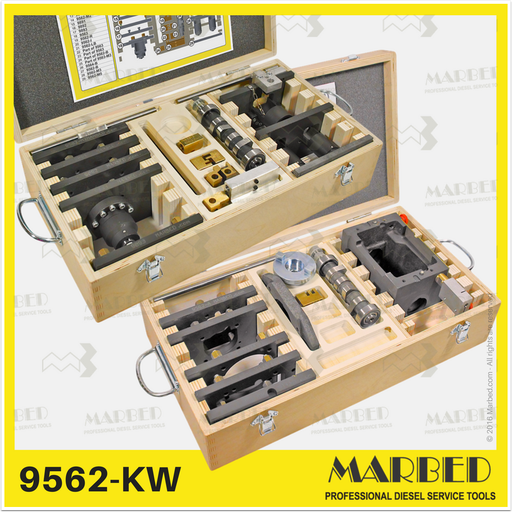

Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 11 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in two wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyl. camshaft 7 mm (9564-A) and 6 mm (9564-B)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Manometric assembly for the LDA testing bench. Manometer 0-2,5 armoned, shock resistant with steel inox mechanics

It applies on any test bench for diesel fuel injection pumps.
Combining the Cambox with additional plates and spacers, a complete system is obtained for testing up to 19 types of immersed pumps manufactured by Bosch, Denso and Zexel.
This configuration is supplied in three wooden boxes and includes the following components:

- universal cambox (9562-M1) and spacers (9562-M4, 9562-M5)
- 4 cyls Camshaft 7 mm (9564-A) and 6 mm (9564-B)
- 1 cyl Camshaft (9564-C)
- plate for Bosch PFR..1K pumps (9562-A)
- plate for Bosch PFR..1K pumps (9562-B)
- plate for Bosch PFR..2K pumps (9562-C)
- plate for Bosch PFR..3K pumps (9562-D)
- plate for Bosch PFR..4K pumps (9562-E)
- plate for Q-size pumps (9563)
- plate for Stanadyne pumps (9562-M3)
- plate for Zexel PFR..2K pumps (9891)
- plate for Zexel PFR..3K pumps (9892)
- plate for Zexel PFR..4K pumps (9893)
- plate for Nippondenso mini pump 1 cyl. (9562-N)
- plate for Nippondenso mini pump 2-3-4 cyl. (9562-M2)
- rod (9562-F, 9562-L, 9562-H) and controller (9562-F, 9562-L, 9562-H) and fuel controller connectors (9562-G, 9562-LB, 9562-I, 9562-R)
- plate for Yanmar 3 cil pumps (TD9001)
- plate for Yanmar 3 cil pumps (TD9003)
- plate for Yanmar 2 cil pumps (TD9004)
- plate for Bosch PFM..1P pumps (9562-P)
- Cambox mounting flange (9478-BXS)
- drive coupling (9576)

Box complete with universal comparator support to take dimension of rod stroke on pumps on line BOSCH P,P7100,8500,A,B,BV,BOSCH MW,M,RSF ando so on
