基礎知識

Foundamentals

  • This section refers to specialty hand tools and test equipment that are always in demand.
  • They are also considered evergreen, meaning their need will never expire, as they are crucial for everyday processes in the diesel service industry.



EUR (ecommerce)
排序： 精选

基礎知識

ERT45R控制單元
ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。
High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M12x1,5 mm
Similar to Bosch reference 1 680 750 014, Hartridge AHP117, Denso 95091-10260
Special tools (in wooden case) for the Bosch P size in-line pumps
Dial gauge bracket
Dial gauge bracket for rod stroke. Thread 24x1,5 protusion 18 mm for PE…P pumps
Cradle for Bosch test bench, center distance 125 - guide 20. Similar to 1 688 010 124
Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.
Anti backlash half-coupling according to ISO 4008/1, for diesel injection pump test benches.
Tools box
Tool box for disassembly and eassembly of PES…M BOSCH pumps and PES…RSF…Mercedes.
The set is supplied without the reamer 9333 because discontinued.
CAV Tool box
Tool box for assembly and disassembly of CAV rotary pumps.
(17 items - 24 particulars)

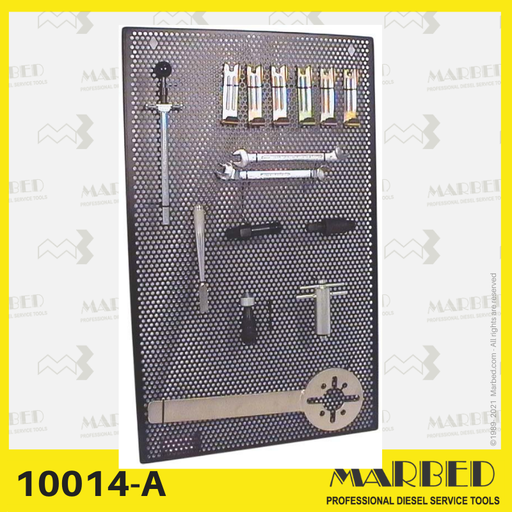

Size A in-line fuel injection pump service tools panel
Size A in-line fuel injection pump service tools panel
Tools kit
Tools kit for RQV-RSV pumps testing

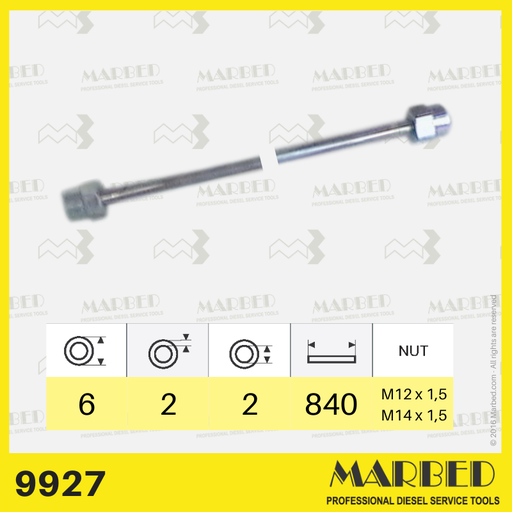

High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 840 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 017, Hartridge AHP118, Denso 95095-10060

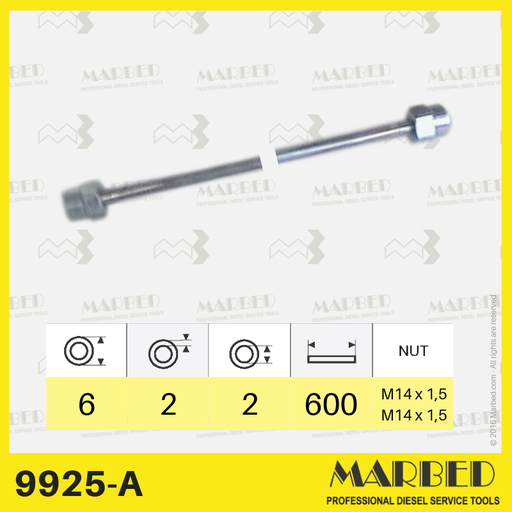

TUBO 6X2X600 14/14 (1 680 750 008)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 600 mm
- nuts: M14x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 008, Hartridge AHP119, Denso 95091-10280

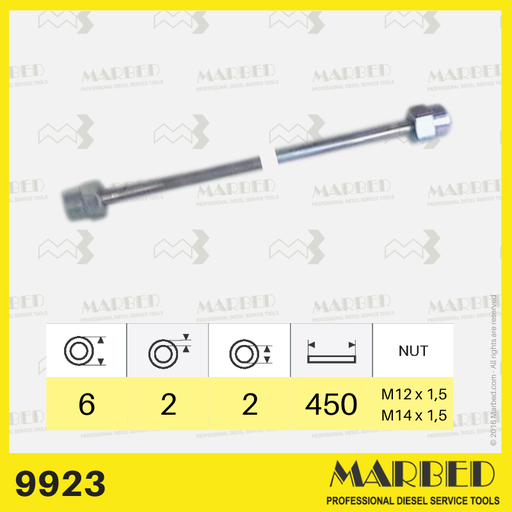

High pressure test pipes for test bench (unbent)
Specifications:
- external diameter: 6 mm
- internal diameter: 2 mm
- thickness: 2 mm
- length: 450 mm
- nuts: M12x1,5 mm - M14x1,5 mm
Similar to Bosch reference 1 680 750 073, Hartridge AHP120

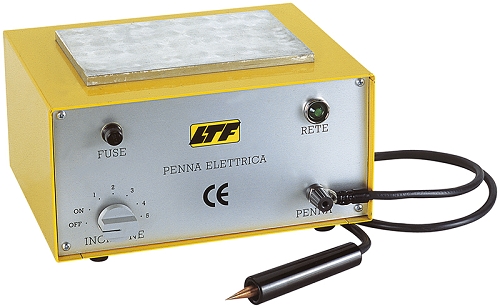

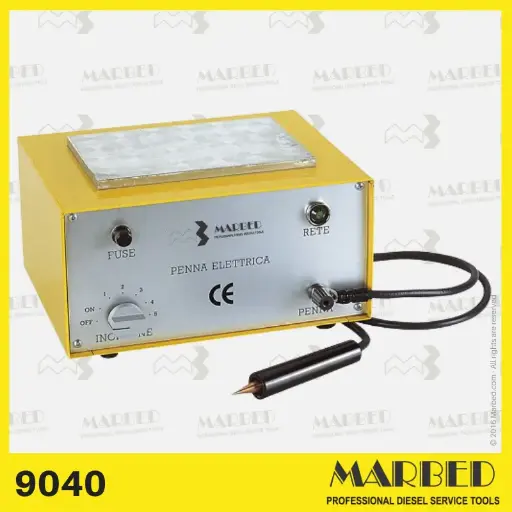

Electric pen
Electric pen
Conventional tappet holder, on P type in-line pumps. Similar to 0 986 611 613, KDEP 1041.

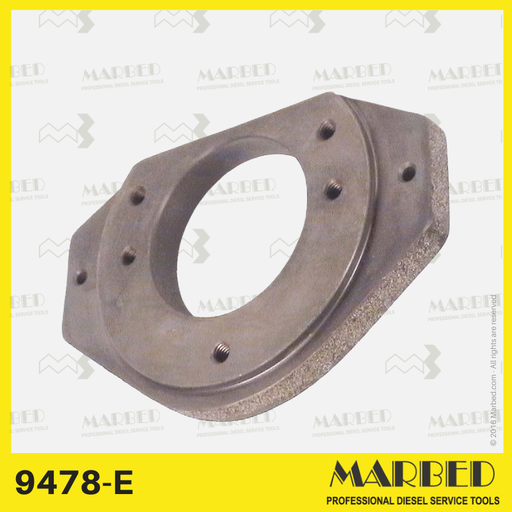

Flange for CAV-DPS
Flange for CAV-DPS diam.68 mm.(Ford Transit) BMW VE electronic (BH 1685720219)

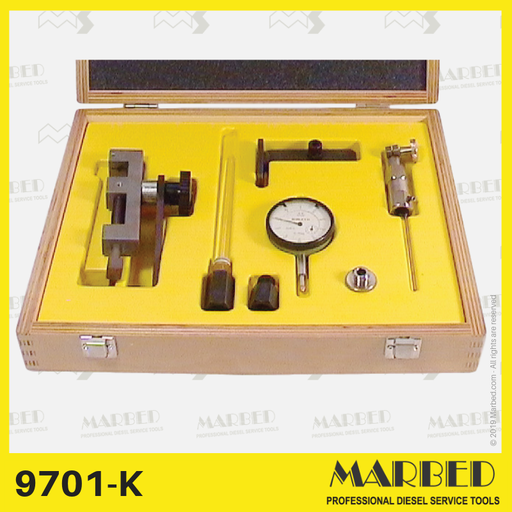

Comparator supports box
Universal comparator supports box for delivery start on test bench and check for BOSCH P injection pumps setting on the engine

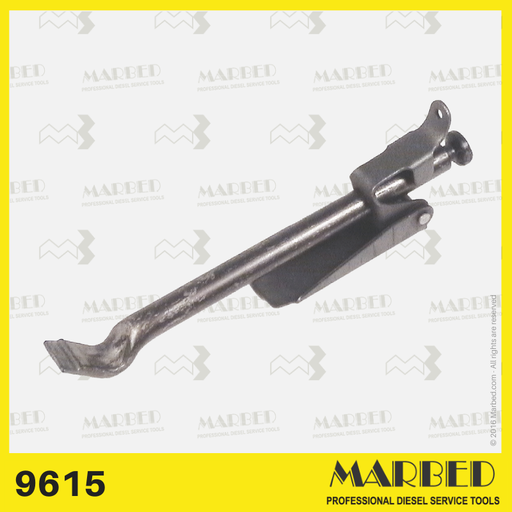

Tappet holder for PE(S)..A.. pumps. Similar to Bosch 0 986 611 227 - KDEP 2912.
Similar to the reference Bosch 0 986 611 227, Bosch 1 682 027 001, KDEP 2912.
Pannello montaggio/smontaggio pompe P7100 e P7800. Serie ristretta.
Tappet holder to lift tappets on inline injection pumps size P 8500, R, H. SImilar to 0 986 612 482, KDEP 1881.
