Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)

ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。

High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.

The flange 8155-E warrants the centered clamping of the majority of cr pumps (Bosch CP1, CP3, CP4, Delphi, Denso, VDO), on any test bench.
The flange is equipped with 4 rings of reduction to suite the 50, 60, 68, 80 mm hub diameters, as well as CP1K pumps.
The flange requires 9680-A universal cradle or similar.

Swivel vice for Common-rail pumps

Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.

Tests and ohmic measurements should be obtained with a multimeter, to be used in conjuction with OTA.
The measuring point are fixed, so that the operator has the hands free.
The combination of the electric contacts is obtained by easily rotating the two knobs, like a game.
Function similar to Bosch 0 986 611 929.

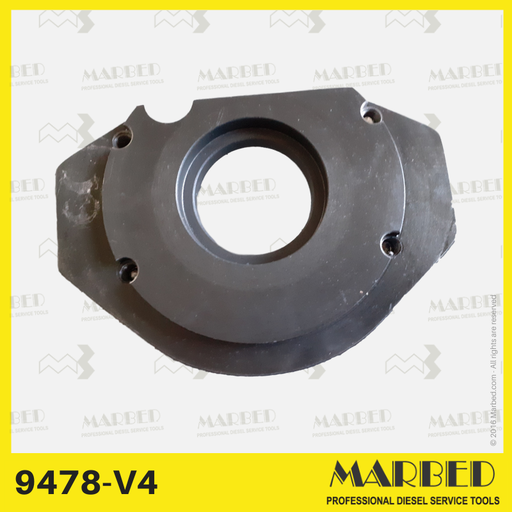

The flange 9478-V4 warrants the centered clamping of the Denso ECD-V4 diesel fuel injection pumps, on any test bench.
The flange requires 9680-A universal cradle or similar.

The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.

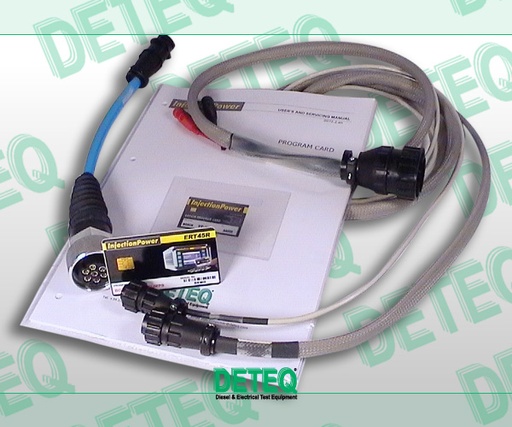

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cable
- injector with lift-sensor
- servicing manual with step-by-step illustrated instructions

Kit for testing rotary Denso ECD-V3/V4 pumps.The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V3/V4 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of EDC-V5 pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

The kit includes:
- programming smartcard that allows ERT45R Simulator to actuate the necessary functions to test this type of pump
- basic cable (2 mt. length)
- adapter cable 81.02.434 (similar to Bosch 0986612434). Additional cables are available, under request
- Illustrated step-by-step instructions manual
- Test data to calibrate the pumps that can be connected to the adapter cable 81.02.434

使用此综合套件，充分发挥模拟器ERT45R在任何测试台上测试博世VP44和VR30柴油燃油喷射泵的全部潜力。该套件包含所有您需用以顺畅操作的组件：

编程卡，用于激活ERT45R控制单元的必要功能。
基本电缆（2米长），为连接泵时提供充足的活动范围和灵活性。
转接电缆，用于将基本电缆与各种连接器接口，确保兼容多种柴油喷射泵的定制化要求。
维护手册，提供详细的图文说明，方便安装和操作。
注册表单，用于访问博世VP44/VR30泵校准的测试计划。在接受许可协议后，测试数据将单独免费提供。
重要要求 <<

必须配备ERT45R控制单元（零件编号81.01.080B）以操作软件功能。该可编程控制单元支持超过20种不同类型的柴油喷射泵操作，大幅提升系统的适应性。
特殊支架（零件编号81.01.1A01）是实现正常功能所需的必备组件，还能配合其他类型的柴油喷射泵使用，是一件多用途工具。
套件（零件编号81.01.1A14）专门为博世VP44和VR30泵配置特殊支架，确保精准兼容性。
*** 为最大化编程套件的功能和性能，确保您的配置中包含所有必要组件。 ***

The kit includes the mounting adapters for the following pumps: Bosch VE, Zexel VE, Delphi DPC, DPC, DP200, DPS.

The kit includes:
- programming card that allows ERT45R Simulator to actuate the necessary functions to test this type of pump
- basic cable (2 mt. Length)
- adapter cables 81.04.002 (Fiat), 81.04.003 (Ford), 81.04.004 (Volvo), 81.04.005 (Clio-Kangoo 1st generation), 81.04.006 (Clio-Kangoo 2nd generation).
- servicing manual with step-by-step illustrated instructions
- Registration form to receive the test plan for the calibration of Delphi DPCN pumps. The available test data are supplied separately free of charge, after having accepted the licence agreement.

The kit includes:
- Programming card that allows Simulator ERT45R to actuate the necessary functions to test this type of pump.
- basic cable (2 mt. Length)
- adapter cables 81.06.231 (Nissan TD27, CD20), 81.06.234 (Isuzu 4JG2), 81.06.235 (Hyundai-Mitsubishi, 81.06.236 (MAZDA) are included
- servicing manual with step-by-step illustrated instructions
- test data to calibrate some of the pumps which can be plugged to the adapter cables 81.06.231, 81.06.234, 81.06.235

充分利用ERT45R模拟器的强大功能，测试P、H、M和R型直列柴油燃油喷射泵，适用于任何测试台，使用这款多功能的一体化设备包。此设备包专为无缝操作而设计，包含所有必要组件，以实现高效且精准的测试：

关键功能与组件：
编程卡
激活ERT45R控制单元的必要功能，增强测试能力。

基础电缆（2米长）
提供灵活性和充足的延展空间，在将模拟器连接至泵时更方便操作。

适配器电缆（81.03.104）
与IVECO、VOLVO和SCANIA常用连接器兼容（类似于Bosch 0 986 610 104），确保适用于各种实现方案。

综合维修手册
包含分步骤的图示说明，帮助快速和简单地完成设置与操作，减少停机时间并提高效率。

注册表单
用于访问与提供适配器电缆连接的柴油喷射泵的测试计划。测试数据将单独提供，接受许可协议后可免费获取。

重要要求
要充分发挥设备包的所有潜力，以下组件对于最佳操作至关重要：

ERT45R控制单元（部件编号81.01.080B）：
这一可编程控制单元是关键组件，可支持针对超过20种不同类型柴油燃油喷射泵的操作，进一步提高了系统的功能多样性。
额外适配器电缆：
提供多种适配器电缆，确保与其他定制柴油燃油喷射泵的兼容性，扩展设备包在各种操作需求中的适应能力。
最大化性能
为获得最佳结果，请确认您的配置中包含所有必要组件。这将确保程序包在其峰值性能下运行，在测试应用中提供卓越表现与灵活性。

选择ERT45R模拟器套件，提升您的测试能力，确保柴油喷射泵广泛应用中的可靠性能。
