Modular cambox, Zexel PFR..K , Zexel PFR.. KD, Zexel PFR..MD configuration.
Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)
ERT45R控制單元
ERT45R 控制單元是專為電控柴油噴射幫浦設計的通用測試系統的核心，可與任何測試台相容。這種創新的模擬器是透過廣泛的研究開發出來的，是一種可透過智慧卡（微晶片卡）進行編程的多功能設備。此功能完全符合現代操作要求。
ERT45R 是一項長期投資，可以透過選擇可用的程式套件輕鬆擴展——目前有 21 個選項可用。每個套件包括一張編程卡（軟體）、一份帶有逐步插圖的詳細說明手冊、基礎電纜（長 2 公尺）以及專為特定泵連接器定制的適配器電纜。透過簡單的設置，至少需要一個程式套件來實現功能，這使得 ERT45R 成為尋求增強測試能力同時確保工作環境的靈活性和效率的專業人士的必備工具。
Ball lift relief tool
High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.
The flange 9478-CP4 warrants the centered clamping of the CP4 pumps (Audi and Bmw applications), on any test bench. The flange requires 9680-A universal cradle or similar.
Cradle for Bosch test bench, center distance 125 - guide 20. Similar to 1 688 010 124
Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.
Sealing pipe for the diesel injection service with M12x1.5 / M14x1.5 female coupling (on side of quick connection and immediate release). Female M14x1.5 mm coupling (on fixed side) and removable male fitting.
OTA, Interface to make easier, faster and secure the diagnostic of the electric circuits of actuators and sensors applied on the diesel fuel injection pumps.
Tests and ohmic measurements should be obtained with a multimeter, to be used in conjuction with OTA.
The measuring point are fixed, so that the operator has the hands free.
The combination of the electric contacts is obtained by easily rotating the two knobs, like a game.
Function similar to Bosch 0 986 611 929.
Clamp stand with short shaft (380 mm long)
Similar to Bosch genuine ref. 0 986 611 249, KDEP 2919/1
ERT45R Programming Kit for Caterpillar C6.6 and C4.4 Common Rail Pumps
The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.

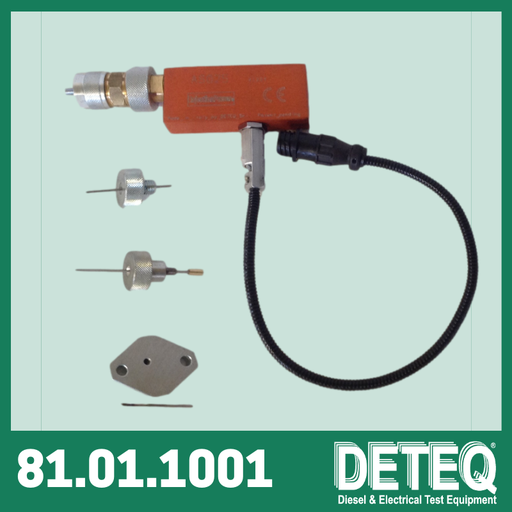

AS25 electronic sensor to measure the travel of the timing-device piston on diesel pumps.
The kit includes the mounting adapters for the following pumps: Bosch VE, Zexel VE, Delphi DPC, DPC, DP200, DPS.
New bracket for pumps PFM1P100
New version of the b racket 9562-S. This revised design is suitable for the PFM1P100 pumps and the 0 141 401 106 as well.
Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M16x1,5
Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M12x1,5

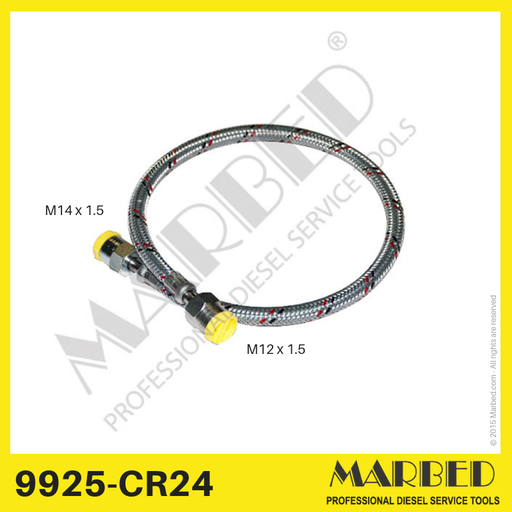

Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M14x1,5

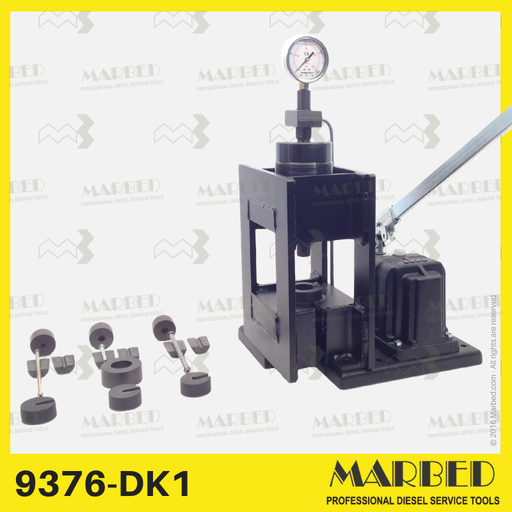

用于钢管端部的压力机和成型套件，共轨和传统注射
该全包套件将我们 20 吨手动 9376-D 压力机的强大功能与三个多功能成型套件相结合，为您提供满足管道修复需求的终极解决方案。
无论您处理的是传统喷射管还是共轨喷射管，该套装都能确保您拥有合适的工具。
重量：约42公斤
尺寸：厘米40x30x56高
Metallic manual pump to perform the following tests: - diesel pressure up to + 1.5 bar on turbocharger, LDA flow control valve, turbines, etc. - vacuum -1000 mbar on petrol turbocharger, valve filters, membrane for diesel pump regulator, etc.
Conventional tappet holder, on P type in-line pumps. Similar to 0 986 611 613, KDEP 1041.
Clamp
Clamp with two rods (spare part)
Tappet holder for PE(S)..A.. pumps. Similar to Bosch 0 986 611 227 - KDEP 2912.
Similar to the reference Bosch 0 986 611 227, Bosch 1 682 027 001, KDEP 2912.

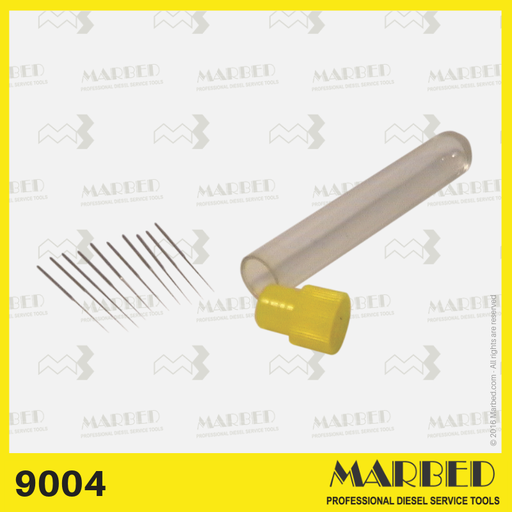

Needles to clean the diesel nozzles
Set of 9 pentagonal reamers to remove dirt and oxide from diesel nozzle holes.
3 pieces by 3 different dimensions: 0.05 // 0.07 // 0.10 mm
