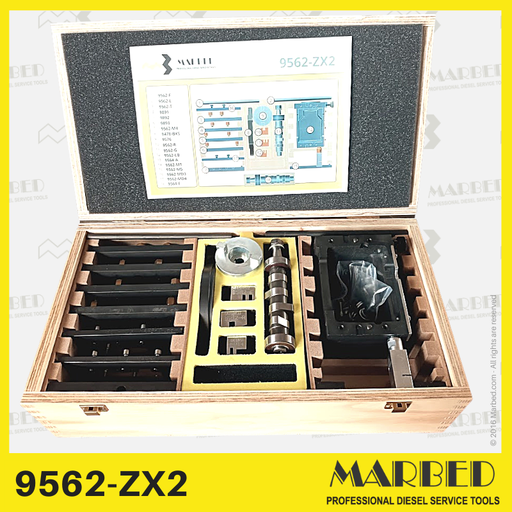

Modular cambox, Zexel PFR..K , Zexel PFR.. KD, Zexel PFR..MD configuration.
Modular system for testing the camshaftless pumps manufactured by Zexel, with sizes:
- PFR1K.., PFR2K.., PFR3K.. PFR4K..
- PFR3KD, PFR4KD
- PFR3MD, PFR4MD
The cambox can be applied on any test bench for the diesel fuel injection pumps.
This configuration is supplied in one wooden box and includes the following components:

- Universal Cambox (9562-M1) and spacer (9562-M4 and 9562-M5)
- 4 cyl camshafts (9564-A and 9564-E)
- Fixing plate for Zexel PFR .. 1K (9562-T)
- Fixing plate for Zexel PFR .. 2K (9891)
- Fixing plate for Zexel PFR .. 3K (9892)
- Fixing plate for Zexel PFR .. 4K (9893-D)
- Fixing plate for Zexel PFR .. 3KD/MD (9562-MD3)
- Fixing plate for Zexel PFR .. 4KD/MD (9562-MD4)
- Rods (9562-F and 9562-L) and fuel control connector (9562-G, 9562-I, 9562-R and 9562-LB )
- Cambox mounting flange (9478-BXS)
- Drive coupling (9576)
ERT45R 제어 장치
ERT45R 제어 장치는 모든 테스트 벤치와 호환되는 전자 제어 디젤 분사 펌프용으로 설계된 범용 테스트 시스템의 핵심입니다. 이 혁신적인 시뮬레이터는 광범위한 연구를 통해 개발되었으며, 스마트카드(마이크로칩 카드)를 통해 프로그래밍할 수 있는 다재다능한 장치가 탄생했습니다. 이 기능은 최신 운영 요구 사항과 완벽하게 일치합니다.
ERT45R은 장기 투자로, 현재 21개의 옵션을 제공하는 다양한 프로그래밍 키트를 통해 쉽게 확장할 수 있습니다. 각 키트에는 프로그래밍 카드(소프트웨어), 단계별 그림이 있는 자세한 사용 설명서, 기본 케이블(길이 2m) 및 특정 펌프 커넥터에 맞게 조정된 어댑터 케이블이 포함되어 있습니다. 간단한 설정으로 기능을 위해 최소한 하나의 프로그래밍 키트가 필요하므로 ERT45R은 작업 환경에서 유연성과 효율성을 보장하면서 테스트 기능을 향상시키려는 전문가에게 필수적인 도구입니다.
Ball lift relief tool
High accuracy electronic tool to test and trig the electromagnetic actuator of Bosch CRI and CRIN injectors and automatically relief the ball lift for the 3rd stage repair.
The flange 9478-CP4 warrants the centered clamping of the CP4 pumps (Audi and Bmw applications), on any test bench. The flange requires 9680-A universal cradle or similar.
Cradle for Bosch test bench, center distance 125 - guide 20. Similar to 1 688 010 124
Universal clamping bracket to hold several flanges allowing the centered clamping of flanged diesel injection pumps.
The 125 mm centering height and 20mm guide (Bosch standard) can be adapted to different requirements, by the proper adapting spacers.
Sealing pipe for the diesel injection service with M12x1.5 / M14x1.5 female coupling (on side of quick connection and immediate release). Female M14x1.5 mm coupling (on fixed side) and removable male fitting.
OTA, Interface to make easier, faster and secure the diagnostic of the electric circuits of actuators and sensors applied on the diesel fuel injection pumps.
Tests and ohmic measurements should be obtained with a multimeter, to be used in conjuction with OTA.
The measuring point are fixed, so that the operator has the hands free.
The combination of the electric contacts is obtained by easily rotating the two knobs, like a game.
Function similar to Bosch 0 986 611 929.
Clamp stand with short shaft (380 mm long)
Similar to Bosch genuine ref. 0 986 611 249, KDEP 2919/1
ERT45R Programming Kit for Caterpillar C6.6 and C4.4 Common Rail Pumps
The ERT45R Programming Kit enhances the functionality of the ERT45R control unit, specifically for testing Caterpillar C6.6 and C4.4 common rail pumps.
By leveraging the available features, Diesel Fuel Injection Specialists are equipped to conduct a comprehensive range of tests with confidence, achieving both precision and reliability in evaluating the performance of this type of pumps.
The specialized software together with the cables are crucial for professionals aiming to deliver high-quality service in fuel injection system diagnostics, thereby improving overall operational efficiency.
AS25 electronic sensor to measure the travel of the timing-device piston on diesel pumps.
The kit includes the mounting adapters for the following pumps: Bosch VE, Zexel VE, Delphi DPC, DPC, DP200, DPS.
New bracket for pumps PFM1P100
New version of the b racket 9562-S. This revised design is suitable for the PFM1P100 pumps and the 0 141 401 106 as well.
Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M16x1,5
Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M12x1,5
Flexible pipe
Flexible High pressure line L=600 mm. - M12x1,5 - M14x1,5
커먼레일 및 일반 사출 모두에서 강관 끝단을 위한 프레스 기계 및 성형 키트 번들
이 모든 것이 포함된 세트는 20톤 수동 작동식 9376-D 프레스의 성능과 세 가지 다용도 성형 키트를 결합하여 파이프 수리 요구 사항에 맞는 최고의 솔루션을 제공합니다.
기존 주입 파이프나 커먼 레일 주입 파이프 중 무엇을 사용하든 이 번들은 귀하가 원하는 대로 사용할 수 있는 올바른 도구를 제공합니다.
무게: 약 42kg
크기: cm 40x30x56h
Metallic manual pump to perform the following tests: - diesel pressure up to + 1.5 bar on turbocharger, LDA flow control valve, turbines, etc. - vacuum -1000 mbar on petrol turbocharger, valve filters, membrane for diesel pump regulator, etc.
Conventional tappet holder, on P type in-line pumps. Similar to 0 986 611 613, KDEP 1041.
Clamp
Clamp with two rods (spare part)
Tappet holder for PE(S)..A.. pumps. Similar to Bosch 0 986 611 227 - KDEP 2912.
Similar to the reference Bosch 0 986 611 227, Bosch 1 682 027 001, KDEP 2912.
Needles to clean the diesel nozzles
Set of 9 pentagonal reamers to remove dirt and oxide from diesel nozzle holes.
3 pieces by 3 different dimensions: 0.05 // 0.07 // 0.10 mm
